Softener Series
- Addresses hard water problems such as calcification, scaling, and spotting by removing magnesium and calcium hardness minerals and discarding them to drain.
- Single or multiple softener configurations
- 5-cycle automatic softener valves
- Water meter regeneration initiation
- Single, alternating, or twin metered controls
- Sequential or parallel controls for multiple softeners
- Free standing FRP fiberglass wrapped polyethylene resin tanks
- Heavy duty polyethylene brine tanks and lids
- Food grade high capacity softener resin
Single Water Softener Specifications
Code | Service Flow (lpm) | Peak Service Flow (lpm) | Backwash Flow (lpm) | Min Operating Pressure | Max Operating Pressure | Inlet/Outlet Connection Size | Drain Connection Size |
---|---|---|---|---|---|---|---|
S-09-WS | 19 | 30 | 10 | 210kPa | 700kPa | 25mm BSPM | 19mm Hose Barb |
S-10-WS | 28 | 42 | 15 | 210kPa | 700kPa | 25mm BSPM | 19mm Hose Barb |
S-12-WS | 37 | 56 | 20 | 210kPa | 700kPa | 25mm BSPM | 19mm Hose Barb |
S-13-WS | 50 | 75 | 21 | 210kPa | 700kPa | 32mm BSPM | 19mm Hose Barb |
S-14-WS | 67 | 100 | 24 | 210kPa | 700kPa | 32mm BSPM | 25mm Hose Barb |
S-16-WS | 83 | 125 | 34 | 210kPa | 700kPa | 32mm BSPM | 25mm Hose Barb |
S-18-WS | 96 | 150 | 41 | 210kPa | 700kPa | 40mm BSPF | 40mm BSPF |
S-21-WS | 117 | 175 | 56 | 210kPa | 700kPa | 40mm BSPF | 40mm BSPF |
S-24-WS | 167 | 250 | 75 | 210kPa | 700kPa | 40mm BSPF | 40mm BSPF |
S-30-WS | 283 | 425 | 113 | 210kPa | 700kPa | 50mm BSPF | 50mm BSPF |
S-36-WS | 433 | 650 | 163 | 210kPa | 700kPa | 50mm BSPF | 50mm BSPF |
S-42-WS | 583 | 875 | 224 | 210kPa | 700kPa | 80mm BSPF | 80mm BSPF |
S-48-WS | 733 | 1100 | 292 | 210kPa | 700kPa | 80mm BSPF | 80mm BSPF |
S-63-WS | 1167 | 1300 | 504 | 210kPa | 700kPa | 80mm BSPF | 80mm BSPF |

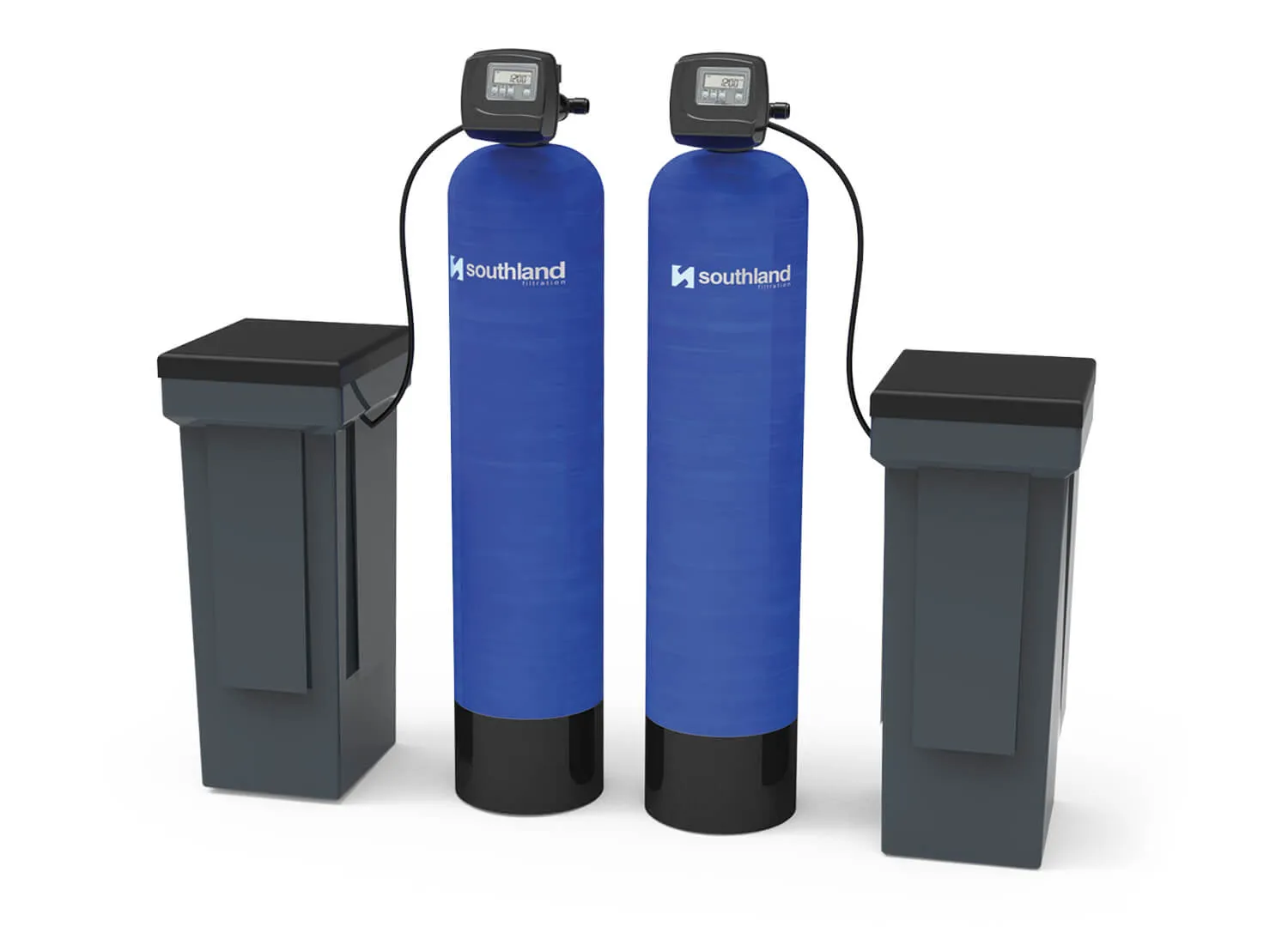

Duplex Water Softener Specifications
Code | Service Flow (lpm) | Peak Service Flow (lpm) | Backwash Flow (lpm) | Min Operating Pressure | Max Operating Pressure | Inlet/Outlet Connection Size | Drain Connection Size |
---|---|---|---|---|---|---|---|
D-09-WS | 38 | 60 | 10 | 210kPa | 700kPa | 25mm BSPM | 19mm Hose Barb |
D-10-WS | 56 | 84 | 15 | 210kPa | 700kPa | 25mm BSPM | 19mm Hose Barb |
D-12-WS | 74 | 112 | 20 | 210kPa | 700kPa | 25mm BSPM | 19mm Hose Barb |
D-13-WS | 100 | 150 | 21 | 210kPa | 700kPa | 32mm BSPM | 19mm Hose Barb |
D-14-WS | 134 | 200 | 24 | 210kPa | 700kPa | 32mm BSPM | 25mm Hose Barb |
D-16-WS | 166 | 250 | 34 | 210kPa | 700kPa | 32mm BSPM | 25mm Hose Barb |
D-18-WS | 192 | 300 | 41 | 210kPa | 700kPa | 40mm BSPF | 40mm BSPF |
D-21-WS | 234 | 350 | 56 | 210kPa | 700kPa | 40mm BSPF | 40mm BSPF |
D-24-WS | 334 | 500 | 75 | 210kPa | 700kPa | 40mm BSPF | 40mm BSPF |
D-30-WS | 566 | 850 | 113 | 210kPa | 700kPa | 50mm BSPF | 50mm BSPF |
D-36-WS | 866 | 1300 | 163 | 210kPa | 700kPa | 50mm BSPF | 50mm BSPF |
D-42-WS | 1166 | 1750 | 224 | 210kPa | 700kPa | 80mm BSPF | 80mm BSPF |
D-48-WS | 1466 | 2200 | 292 | 210kPa | 700kPa | 80mm BSPF | 80mm BSPF |
D-63-WS | 2334 | 2600 | 504 | 210kPa | 700kPa | 80mm BSPF | 80mm BSPF |
