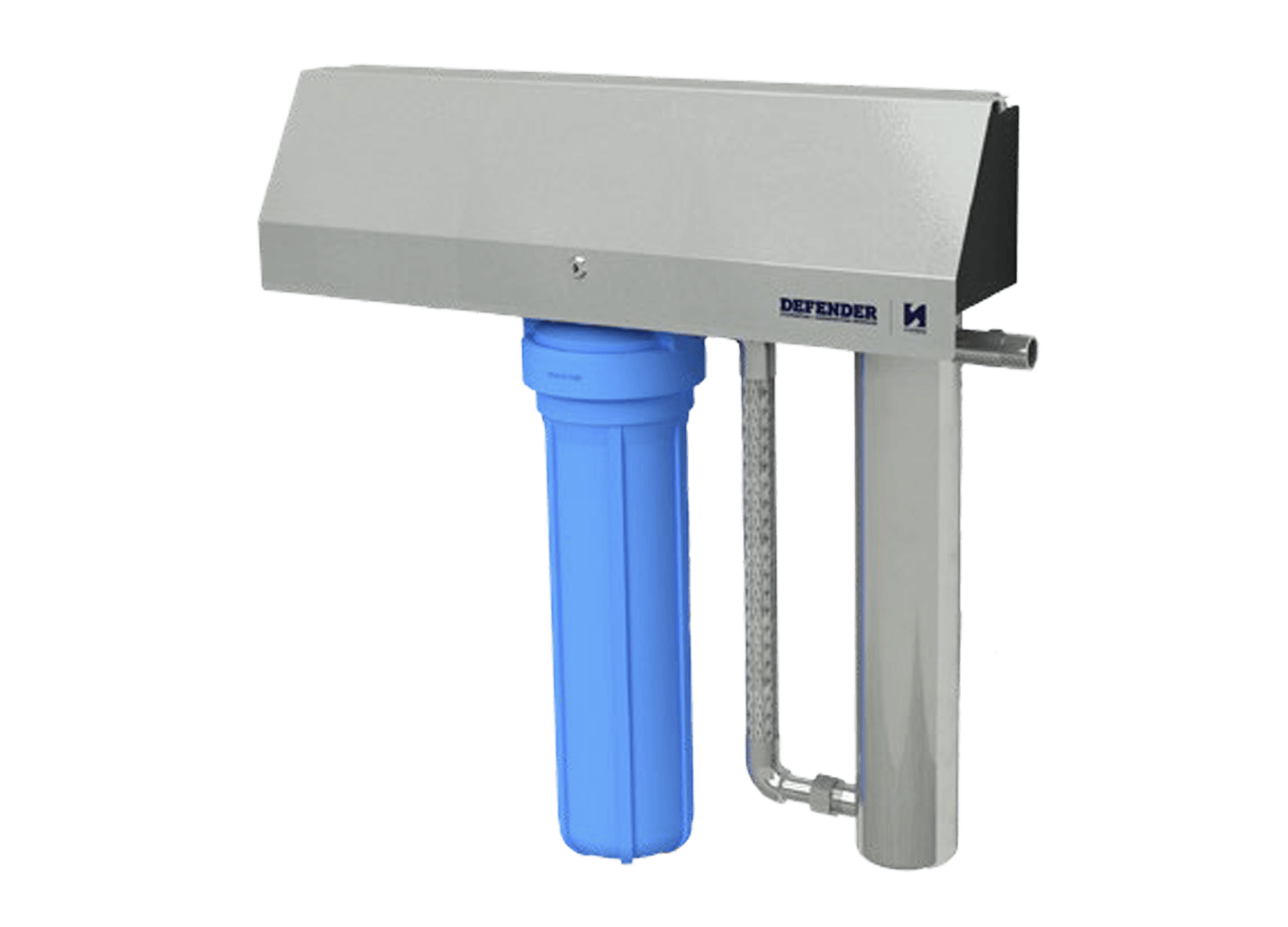

Defender

S5, S6 Series

  • Flows up to 60L/m (5.4m3/h)
  • Moulded twin head system ensures compact installation and no leaks
  • Dual stage filtration for longer filter life
  • Durable reinforced polypropylene filter housings
  • Supplied with mounting screws and spanner. Wall-mount bracket supplied separate
  • Utilises high output eco-friendly UV disinfection technology to ensure maximum bacteria kill
  • Max operating pressure: 830kPa
  • Includes 316 S/S flexi connector and fittings to join filter housings to UV system

Models & Specs

Code Model Flow Rates
D00600502 DEFENDER S5 Single Filtration/Disinfection System 25mm BSP, 20", 120 L/ *
D00600503 DEFENDER S6 Single Filtration/Disinfection System 40mm BSP, 20", 180 L *
*Cartridges supplied separately, select from below
S15201001 Pleated Sediment Cartridge 20", Large Diameter, 1um to suit S5/S6 Series 3
S15201002 Pleated Sediment Cartridge 20", Large Diameter, 5um to suit S5/S6 Series 3
S15201003 Pleated Sediment Cartridge 20", Large Diameter, 20um to suit S5/S6 Series 3
S15201004 Pleated Sediment Cartridge 20", Large Diameter, 50um to suit S5/S6 Series 3
S15301001 Pleated Carbon Cartridge 20", Large Diameter, 10um to suit S5/S6 Series 1.8

Spare Parts

Model Code Description
D5, S5 Series S05300508 Housing Spanner to suit 10″ & 20″ Housings
S05300511 Filter Housing O-ring to suit SCL-MP/DEFENDER Series
LL053A-S4 UV Lamp to suit D0600
QD060025 UV Quartz Thimble to suit D0600
SUV-PSL1B-080-DDCV UV Controller Kit to suit D0600
O25-SK UV Quartz Thimble O-ring to suit D0600
D6, S6 Series S05300508 Housing Spanner to suit 10″ & 20″ Housings
S05300511 Filter Housing O-ring to suit SCL-MP/DEFENDER Series
LL085-S4 UV Lamp to suit D0750
QD060028 UV Quartz Thimble to suit D0750
SUV-PSL1B-180-DDCV UV Controller Kit to suit D0750
O28-SK UV Quartz Thimble O-ring to suit D0750
