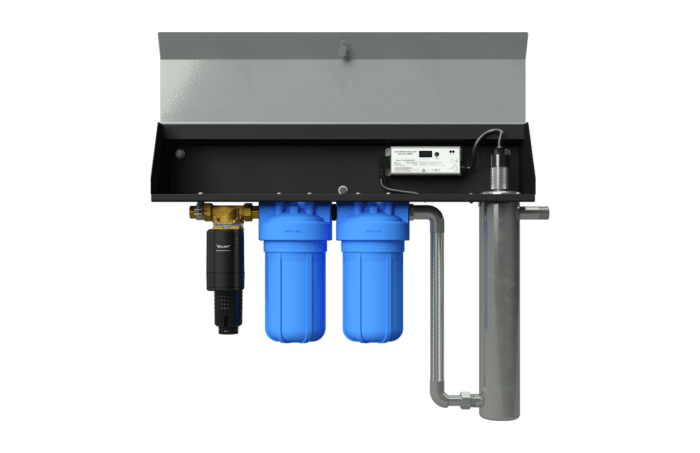

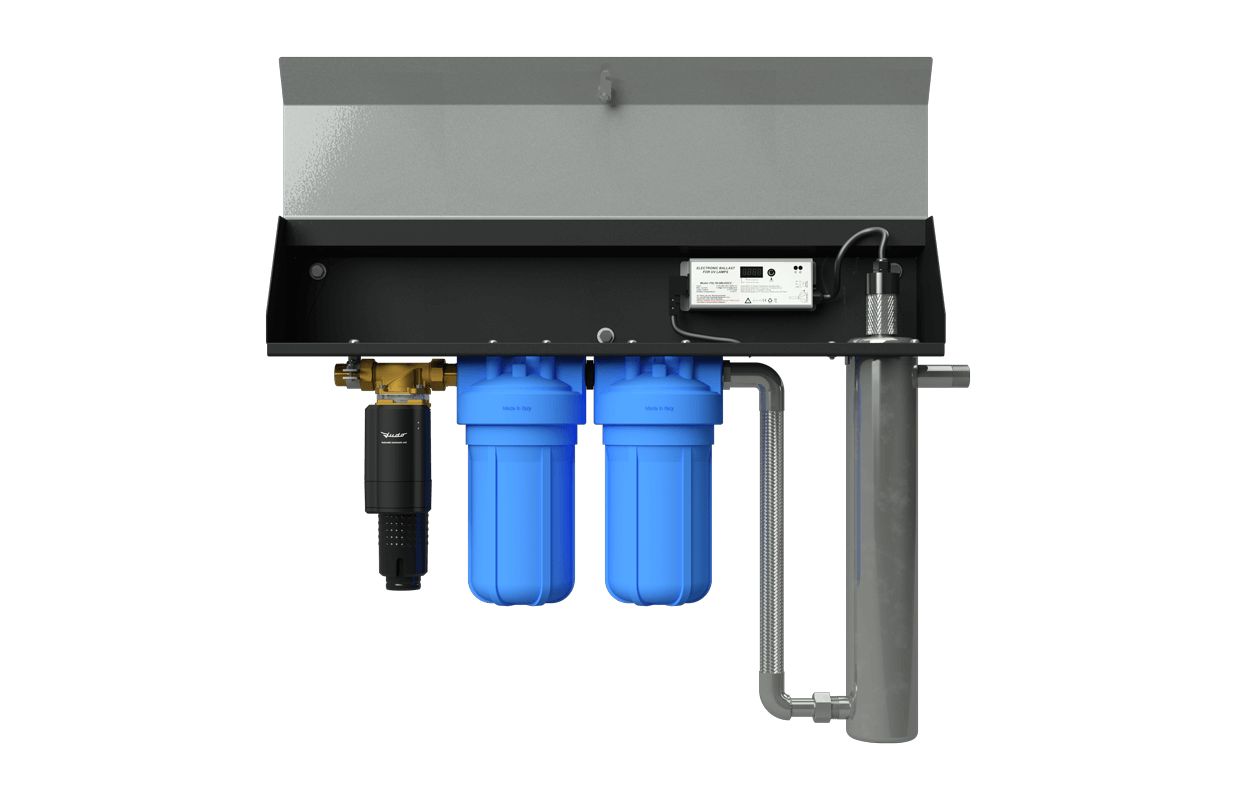

D60, D120, D180 Series

Autobackwashing Sediment Filter + Dual Stage Cartridge Filter & UV Disinfection

  • Flows up to 300l/min (5l/sec)
  • First stage auto self cleaning screen filter extends life of UV pre-filters
  • Second stage, medium grade sediment removal prefilter.
  • Third stage, fine sediment removal
  • Supplied pre-assembled in lockable weather proof wall mount enclosure
  • Designed for ease of installation and maintenance

Models & Specs

Code Model Flow Rate (L/sec)
D00500501 DEFENDER D60 Filtration/Disinfection System. Auto Backwash filter, 2 stages of 10″ sediment removal cartridges, 20um & 5um + UV Disinfection. 25mm Inlet/Outlet, Flow Rate 1.0l/sec (60l/min) 1.0
D00500502 DEFENDER D120 Filtration/Disinfection System. Auto Backwash filter, 2 stages of 20″ sediment removal cartridges, 20um & 5um + UV Disinfection. 25mm Inlet/Outlet, Flow Rate 2.0l/sec (120l/min) 2.0
D00500503 DEFENDER D180 Filtration/Disinfection System. Auto Backwash filter, 2 stages of 20″ sediment removal cartridges, 20um & 5um + UV Disinfection. 40mm Inlet/Outlet, Flow Rate 3.0l/sec (180l/min) 3.0
*Cartridges supplied separately, select from below
S15200502 Pleated Sediment Cartridge 10″, Large Diameter, 5um to to suit D60 Series
S15200503 Pleated Sediment Cartridge 10″, Large Diameter, 20um to to suit D60 Series
S15201002 Pleated Sediment Cartridge 20″, Large Diameter, 5um to suit D60-D180 Series
S15201003 Pleated Sediment Cartridge 20″, Large Diameter, 20um to suit D60-D180 Series

Spare Parts

Model Code Description
D60, D120 1um, 5um, 20um, 50um (refer to pricelist) Sediment Cartridge
10um (refer to pricelist) Carbon Cartridge
N/A Quartz Thimble O-Ring
OR25-SK UV Thimble O-Ring
LL053A-S4 UV Lamp
QD060025 UV Thimble
D180 1um, 5um, 20um, 50um (refer to pricelist) Sediment Cartridge
10um (refer to pricelist) Carbon Cartridge
N/A Quartz Thimble O-Ring
OR28-SK UV Thimble O-Ring
LL085-S4 UV Lamp
QD060028 UV Thimble
