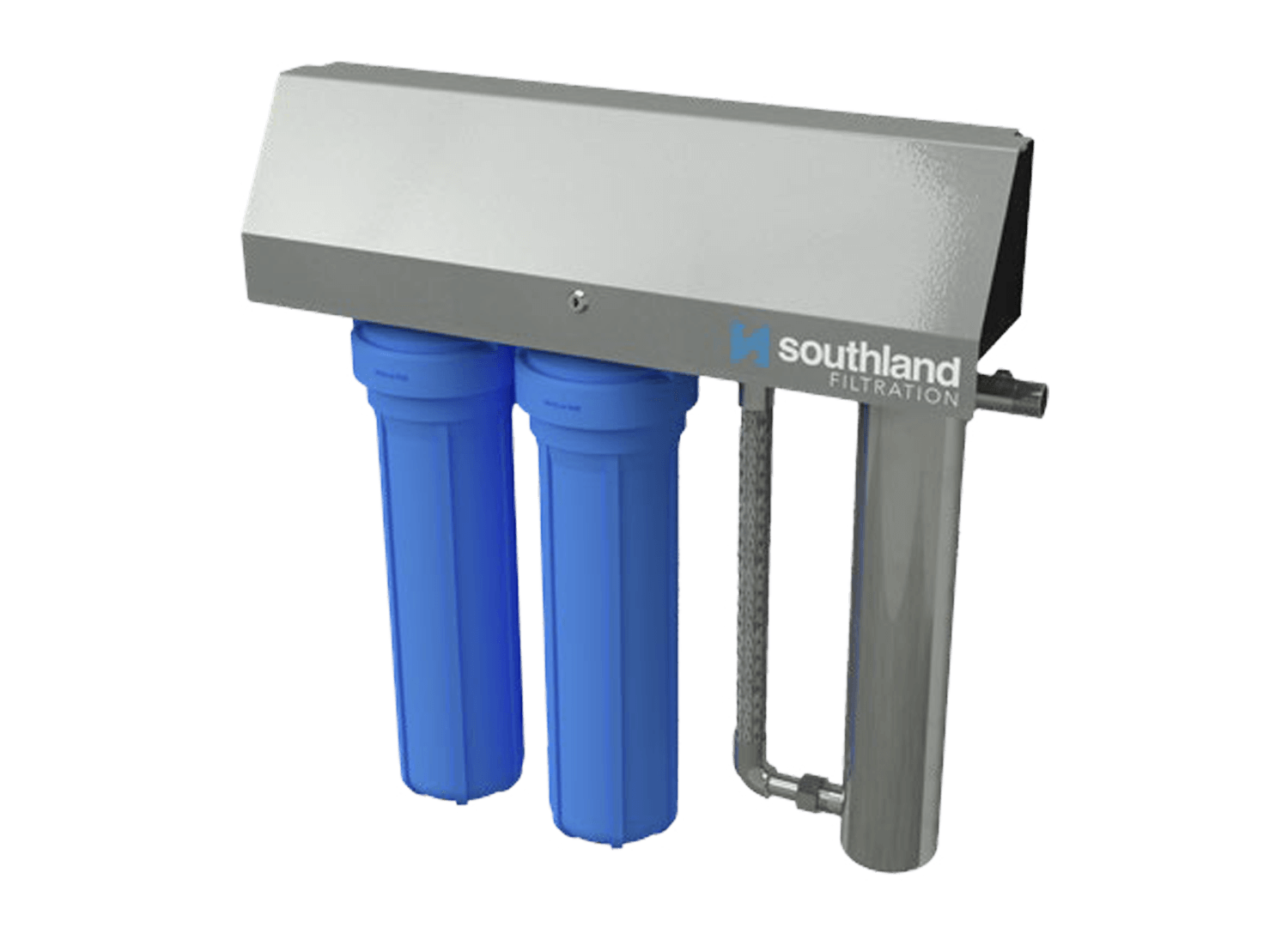

Defender

D5, D6 Series

Dual & Triple Filtration System

  • Flows up to 3.0 L/s (180 L/m)
  • Moulded twin head system ensures
  • Dual stage filtration for longer filter life
  • Durable reinforced polypropylene filter housings
  • Supplied with mounting screws and spanner. Wall-mount bracket supplied separate
  • Utilises high output eco-friendly UV disinfection technology to ensure maximum bacteria kill
  • Max operating pressure: 830kPa
  • Includes 316 S/S flexi connector and fittings to join filter housings to UV system

Models & Specs

Code Model Flow Rates
D00200502 DEFENDER D5 Dual Filtration/Disinfection System 25mm BSP, 20”, 90 L/m*
D00201001 DEFENDER D6 Dual Filtration/Disinfection System 40mm BSP, 20”, 90 L/m*
*Cartridges supplied separately, select from below
S15201001 Pleated Sediment Cartridge 20", Large Diameter, 1um to suit D2/D3/D5/D6 Series 3
S15201002 Pleated Sediment Cartridge 20", Large Diameter, 5um to suit D2/D3/D5/D6 Series 3
S15201003 Pleated Sediment Cartridge 20", Large Diameter, 20um to suit D2/D3/D5/D6 Series 3
S15201004 Pleated Sediment Cartridge 20", Large Diameter, 50um to suit D2/D3/D5/D6 Series 3
S15301001 Pleated Carbon Cartridge 20", Large Diameter, 10um to suit D2/D3/D5/D6 Series 1.8

Spare Parts

Model Code Description
D5, S5 Series S05300508 Housing Spanner to suit 10" & 20" Housings
S05300511 Filter Housing O-ring to suit SCL-MP/DEFENDER Series
LL053A-S4 UV Lamp to suit D0600
QD060025 UV Quartz Thimble to suit D0600
SUV-PSL1B-080-DDCV UV Controller Kit to suit D0600
O25-SK UV Quartz Thimble O-ring to suit D0600
D6, S6 Series S05300508 Housing Spanner to suit 10" & 20" Housings
S05300511 Filter Housing O-ring to suit SCL-MP/DEFENDER Series
LL085-S4 UV Lamp to suit D0750
QD060028 UV Quartz Thimble to suit D0750
SUV-PSL1B-180-DDCV UV Controller Kit to suit D0750
O28-SK UV Quartz Thimble O-ring to suit D0750
