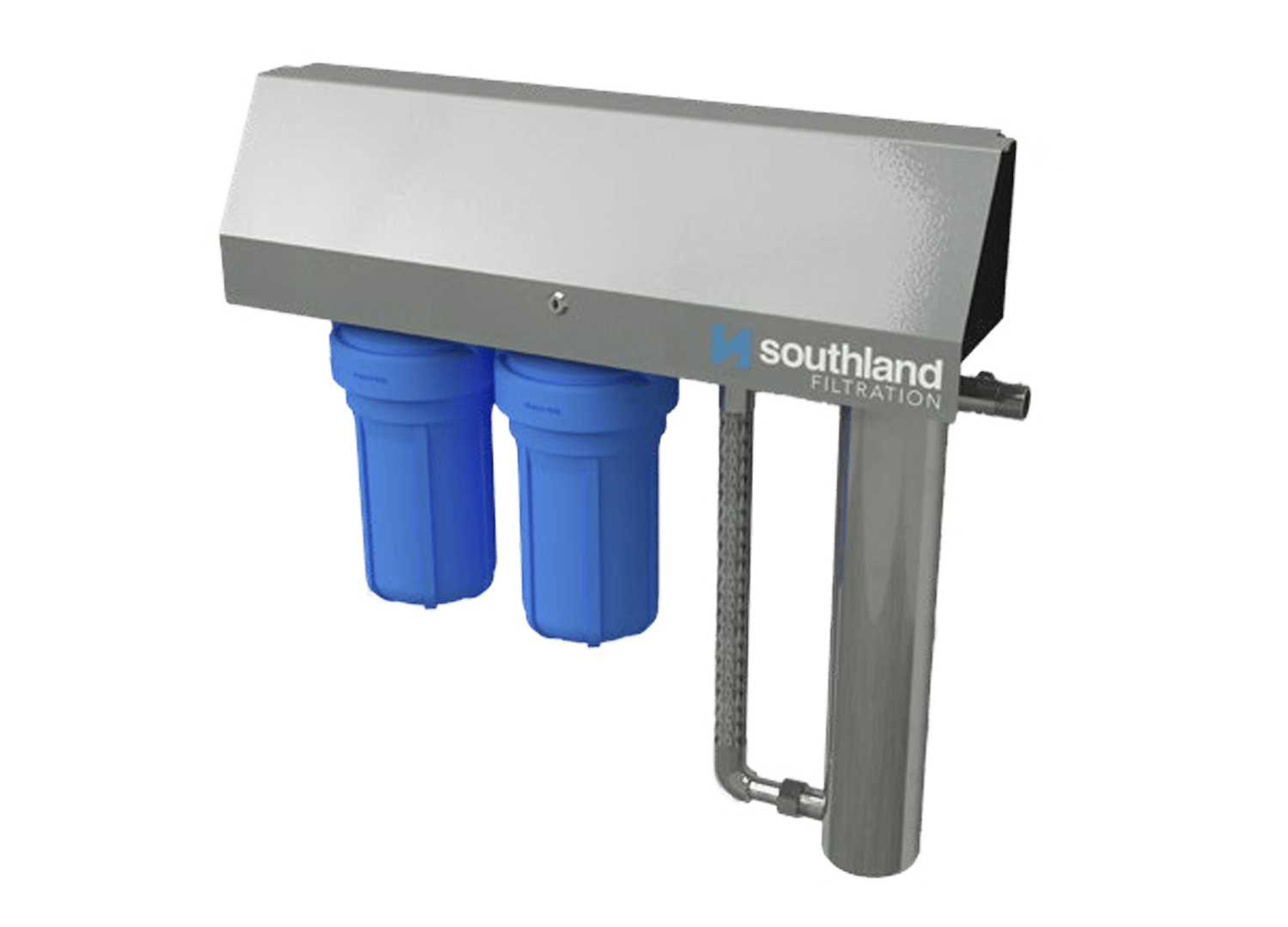

D4 Series
- Flows up to 1.0 L/s (60 L/m)
- Moulded twin head system ensures compact installation and no leaks
- Dual stage filtration for longer filter life
- Durable reinforced polypropylene filter housings
- Supplied with mounting screws and spanner, and wall-mount bracket
- Utilises high output eco-friendly UV disinfection technology to ensure maximum bacteria kill
- Max operating pressure: 830kPa
- Includes 316 S/S flexi connector and fittings to join filter housings to UV system
Models & Specs
| Code | Model | Flow Rates | D00200501 | DEFENDER D4 Dual Filtration/Disinfection System 25mm BSP, 10”, 60 L/m * |
|---|---|---|
| *Cartridges supplied separately, select from below | ||
| S15200501 | Pleated Sediment Cartridge 10", Large Diameter, 1um to suit D1/D4 Series | 1.4 |
| S15200502 | Pleated Sediment Cartridge 10", Large Diameter, 5um to suit D1/D4 Series | 1.5 |
| S15200503 | Pleated Sediment Cartridge 10", Large Diameter, 20um to suit D1/D4 Series | 1.6 |
| S15200504 | Pleated Sediment Cartridge 10", Large Diameter, 50um to suit D1/D4 Series | 1.7 |
| S15200505 | Pleated Sediment Cartridge 10", Large Diameter, 100um to suit D1/D4 Series | 1.8 |
| S15300501 | Pleated Carbon Cartridge 10", Large Diameter, 10um to suit D1/D4 Series | 1 |
Spare Parts
| Model | Code | Description |
|---|---|---|
| D4, S4 Series | S05300508 | Housing Spanner to suit 10" & 20" Housings |
| S05300511 | Filter Housing O-ring to suit SCL-MP/DEFENDER Series | |
| LL053A-S4 | UV Lamp to suit D0600 | |
| QD060025 | UV Quartz Thimble to suit D0600 | |
| SUV-PSL1B-80-DDCV | UV Controller Kit to suit D0600 | |
| O25-SK | UV Quartz Thimble O-ring to suit D0600 |
