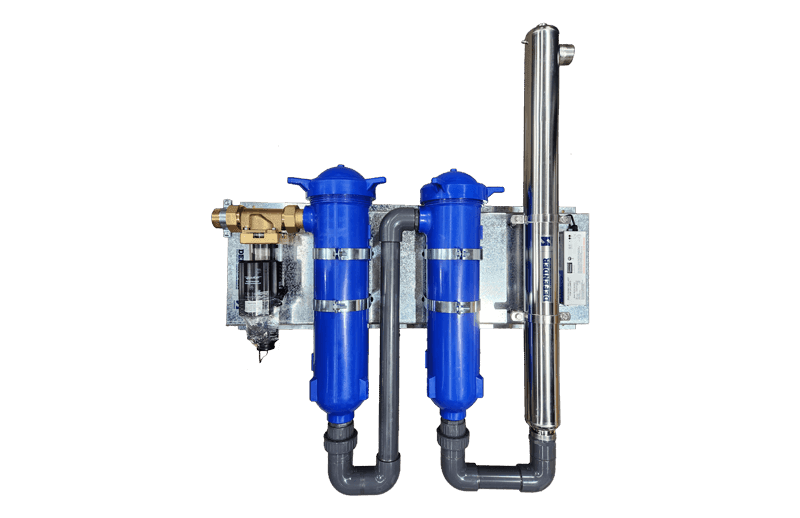

D10, D300 Series

Autobackwashing Sediment Filter + Single Stage Bag Filter & UV Disinfection

  • Flows up to 300l/min (5l/sec).
  • First stage auto self cleaning screen filter extends life of UV pre-filter].
  • Second stage, fine sediment removal filter bag.
  • Supplied pre-assembled on heavy duty wall mount bracket.
  • Designed for ease of installation and maintenance.

Models & Specs

Code Model Flow Rate (L/sec)
D00301501 DEFENDER D10 Filtration/Disinfection System. Auto backwash Filter, 05 Size Filter Bag and UV Disinfection. Inlet/Outlet 50mm, Flow Rate 5l/sec (300l/min)
D00500504 DEFENDER D300 Filtration/Disinfection System. Auto Backwash filter, 2 stages of sediment removal filter bags, 20um & 5um + UV Disinfection. 50mm Inlet/Outlet, Flow Rate 5.0l/sec (300l/min) 5.0
*Cartridges supplied separately, select from below
S10100502 5um Filter Bag to suit D10 Series 5.0
S10100504 20um Filter Bag to suit D300 Series
S10100502 5um Filter Bag to suit D300 Series

Spare Parts

Model Code Description
D10
S10100502 (5um) Sediment Cartridge
LL180-S4 UV Lamp
QD121028 UV Thimble
O28-ST UV Thimble O-Ring
D300
20um & 5um filter bags Sediment Cartridge
1um, 5um, 20um, 50um (Refer to pricelist) Carbon Cartridge
N/A Quartz Thimble O-Ring
O28-ST UV Thimble O-Ring
LL-180-S4 UV Lamp
QD121028 UV Thimble
