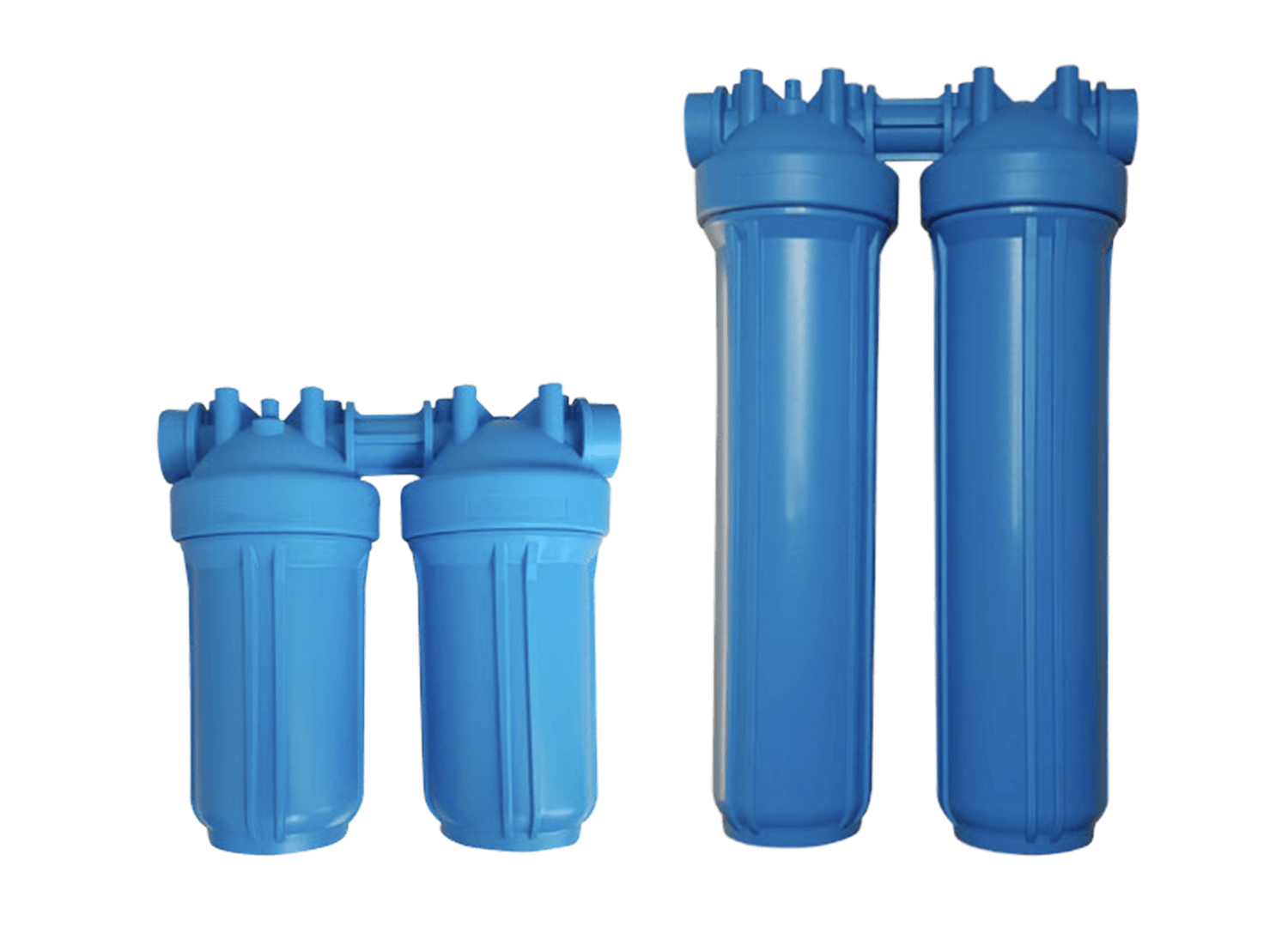

Defender

D1, D2, D3 Series

Dual & Triple Filtration System

  • Flows up to 3.0 L/s (180 L/m)
  • Moulded twin head system ensures compact installation and no leaks
  • Dual stage filtration for longer filter life
  • Durable reinforced polypropylene filter housings
  • Wall-mount brackets with all kits
  • Max operating pressure: 830kPa

Models & Specs

Code Model Flow Rates
D00100501 DEFENDER D1 Dual Filtration System 25mm BSP, 10”, 60 L/m *
D00100502 DEFENDER D2 Dual Filtration System 25mm BSP, 20”, 90 L/m *
D00150502 DEFENDER D2-C Dual Clear Filtration System, 25mm BSP, 20", 90 L/m *
D00101001 DEFENDER D3 Dual Filtration System 40mm BSP, 20”, 180 L/m *
D10100502 DEFENDER T2 Triple Filtration System, 25mm BSP, 20", 90 L/m *
D10150502 DEFENDER T2-C Triple Clear Filtration System, 25mm BSP, 20" – 90 L/m *
*Cartridges supplied separately, select from below
S15200501 Pleated Sediment Cartridge 10", Large Diameter, 1um to suit D1/D4 Series 1.4
S15200502 Pleated Sediment Cartridge 10", Large Diameter, 5um to suit D1/D4 Series 1.5
S15200503 Pleated Sediment Cartridge 10", Large Diameter, 20um to suit D1/D4 Series 1.6
S15200504 Pleated Sediment Cartridge 10", Large Diameter, 50um to suit D1/D4 Series 1.7
S15200505 Pleated Sediment Cartridge 10", Large Diameter, 100um to suit D1/D4 Series 1.8
S15201001 Pleated Sediment Cartridge 20", Large Diameter, 1um to suit D2/D3/D5/D6 Series 3
S15201002 Pleated Sediment Cartridge 20", Large Diameter, 5um to suit D2/D3/D5/D6 Series 3
S15201003 Pleated Sediment Cartridge 20", Large Diameter, 20um to suit D2/D3/D5/D6 Series 3
S15201004 Pleated Sediment Cartridge 20", Large Diameter, 50um to suit D2/D3/D5/D6 Series 3
S15300501 Pleated Carbon Cartridge 10", Large Diameter, 10um to suit D1/D4 Series 1
S15301001 Pleated Carbon Cartridge 20", Large Diameter, 10um to suit D2/D3/D5/D6 Series 1.8

Spare Parts

Model Code Description
D1, D2, D3 Series S05300508 Housing Spanner to suit 10" & 20" Housings
S05300511 Filter Housing O-ring to suit SCL-MP/DEFENDER Series
