Sediment Media Filters

MediaPRO

Sediment Media Filters

Single & Duplex Sediment Removal Filters


Single Sediment Removal Filter:

  • High flow sediment filtration down to 5 micron with superior loading capacity.
  • Suitable for dirt, rust, sand, and other fine particles.

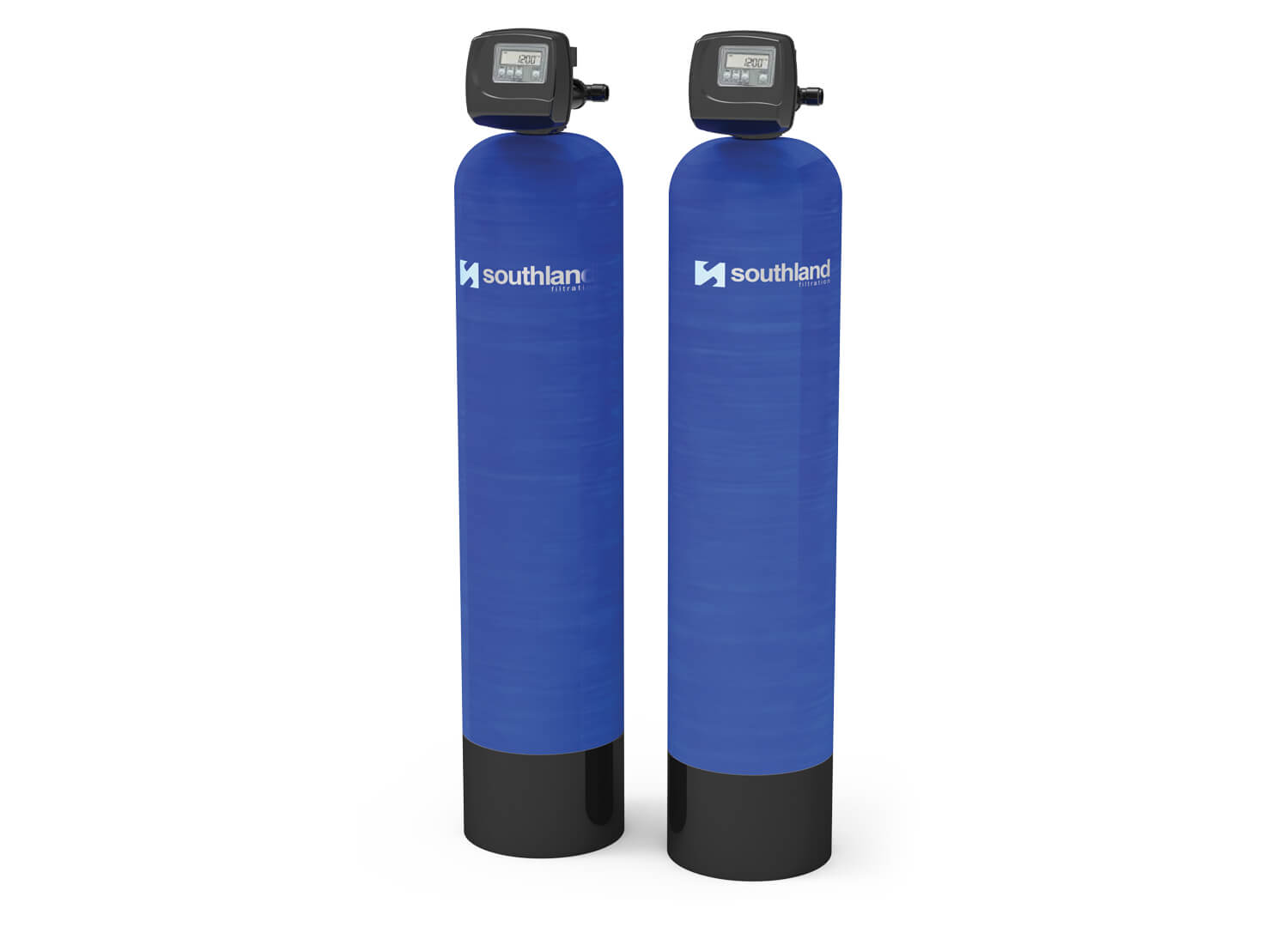

Duplex Sediment Removal Filter for High Capacity Service Flow Rate:

  • High flow sediment filtration down to 5 micron with superior loading capacity.
  • Suitable for dirt, rust, sand, and other fine particles.

Single Sediment Removal Filter Specifications

Code Service Flow (lpm) Peak Service Flow (lpm) Backwash Flow (lpm) Min Operating Pressure Max Operating Pressure Inlet/Outlet Connection Size Drain Connection Size
S-09-SF 20 34 28 240kPa 700kPa 25mm BSPM 19mm Hose Barb
S-10-SF 25 42 34 240kPa 700kPa 25mm BSPM 19mm Hose Barb
S-12-SF 36 60 49 240kPa 700kPa 25mm BSPM 25mm Hose Barb
S-13-SF 43 71 57 240kPa 700kPa 32mm BSPM 25mm Hose Barb
S-14-SF 50 82 66 240kPa 700kPa 32mm BSPM 25mm Hose Barb
S-16-SF 65 108 86 240kPa 700kPa 40mm BSPM 40mm BSPF
S-18-SF 80 133 109 240kPa 700kPa 40mm BSPF 40mm BSPF
S-21-SF 110 183 149 240kPa 700kPa 40mm BSPF 40mm BSPF
S-24-SF 145 241 195 240kPa 700kPa 50mm BSPF 50mm BSPF
S-30-SF 230 383 304 240kPa 700kPa 50mm BSPF 50mm BSPF
S-36-SF 330 550 438 240kPa 700kPa 50mm BSPF 50mm BSPF
S-42-SF 445 741 596 240kPa 700kPa 80mm BSPF 80mm BSPF
S-48-SF 585 822 778 240kPa 700kPa 80mm BSPF 80mm BSPF

Duplex Sediment Removal Filter Specifications (High Capacity)

Code Service Flow (lpm) Peak Service Flow (lpm) Backwash Flow (lpm) Min Operating Pressure Max Operating Pressure Inlet/Outlet Connection Size Drain Connection Size
D-09-SF 40 68 28 240kPa 700kPa 25mm BSPM 19mm Hose Barb
D-10-SF 50 82 34 240kPa 700kPa 25mm BSPM 19mm Hose Barb
D-12-SF 72 120 49 240kPa 700kPa 25mm BSPM 19mm Hose Barb
D-13-SF 86 142 57 240kPa 700kPa 32mm BSPM 25mm Hose Barb
D-14-SF 100 164 66 240kPa 700kPa 32mm BSPM 25mm Hose Barb
D-16-SF 130 216 86 240kPa 700kPa 40mm BSPF 40mm BSPF
D-18-SF 160 266 109 240kPa 700kPa 40mm BSPF 40mm BSPF
D-21-SF 220 366 149 240kPa 700kPa 40mm BSPF 40mm BSPF
D-24-SF 290 482 195 240kPa 700kPa 50mm BSPF 50mm BSPF
D-30-SF 460 766 304 240kPa 700kPa 50mm BSPF 50mm BSPF
D-36-SF 660 1100 438 240kPa 700kPa 50mm BSPF 50mm BSPF
D-42-SF 890 1482 596 240kPa 700kPa 80mm BSPF 80mm BSPF
D-48-SF 1170 1644 778 240kPa 700kPa 80mm BSPF 80mm BSPF
