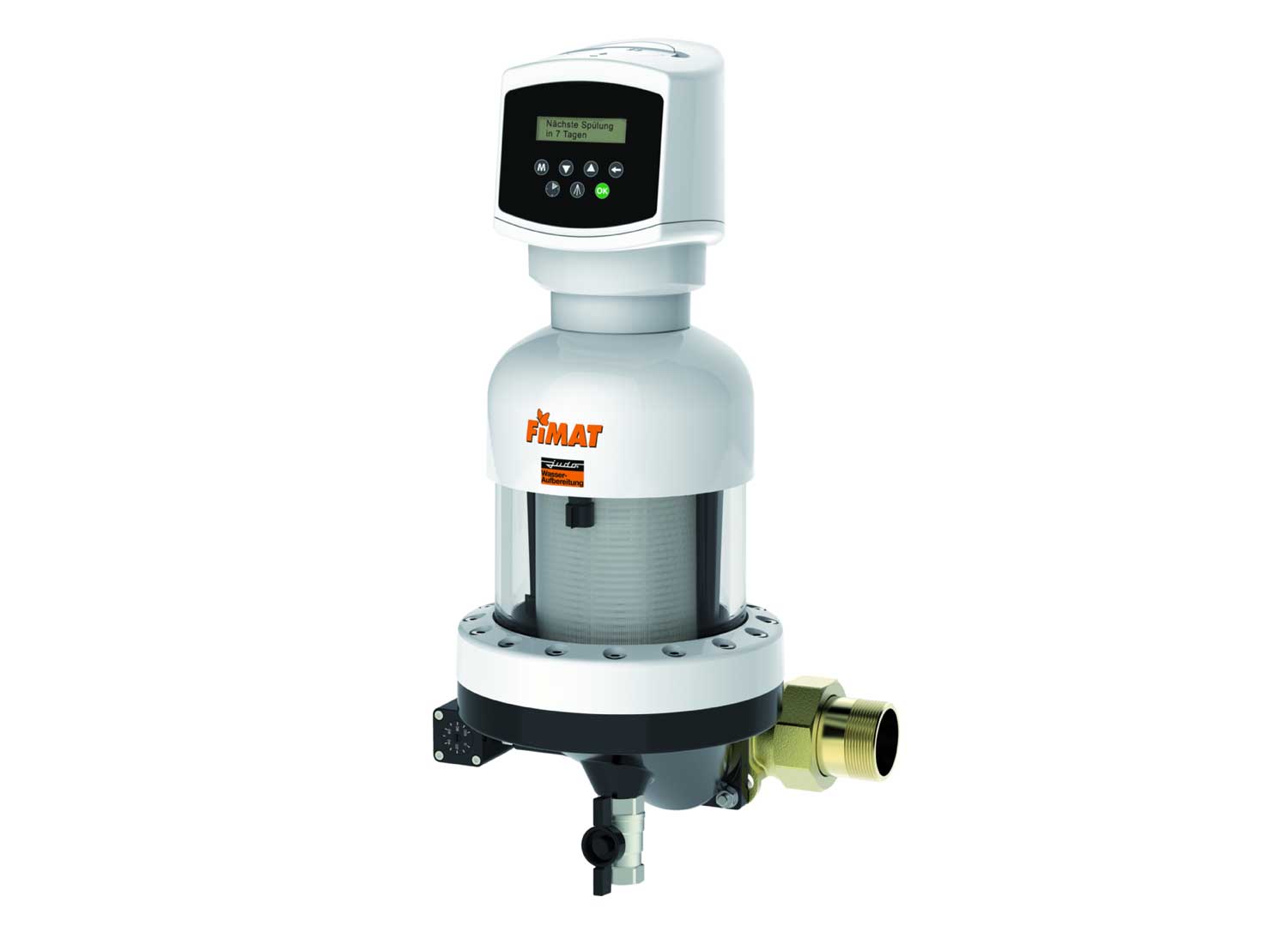

JFXL ATP Series

  • Flows up to 6.1 L/s
  • Automatic backwash via differential pressure and timer control
  • Extremely efficient screen cleaning ratio of 1:1 using point rotation principle
  • Standard 100 micron stainless steel screen (Silver coated to inhibit bacterial growth)
  • No interruption to water flow during screen cleaning
  • Can be mounted in vertical or horizontal pipe runs
  • Clear viewing glass enables full view of screen and backwash operation
  • BMS connection for operation, fault, and backwash status available
  • Fitted with DN80-DN200 screen for greater surface area
  • Minimum operating pressure: 200kPa
  • Pressure class: PN10

Models & Specs

CODE Model FLOW RATE M3/HOUR (L/S)
J8020099 JFXL AT 40mm 20.0 (5.5)
J8020100 JFXL AT 50mm 22.0 (6.1)

* UPGRADES FOR JFXL SERIES:

J0085001 JUDO BMS upgrade to suit JPF series
J0086030 JUDO Screen upgrade to JPF (30 micron)
J0086050 JUDO Screen upgrade to JPF (50 micron)
J0086320 JUDO Screen upgrade to JPF (320 micron)
J0086500 JUDO Screen upgrade to JPF (500 micron)

Spare Parts

Model Code Descriptionl
JPF 20-32mm Series J2010335 Spare Parts Kit to suit JPF 20-32mm
J2020728 30 Micron Screen & Suction Arm Assembly suits JPF 20-32mm (inc. seal kit)
J2021359 100 Micron Screen & Suction Arm Assembly suits JPF 20-32mm (inc. seal kit)
J2020734 320 Micron Screen & Suction Arm Assembly suits JPF 20-32mm (inc. seal kit)
J2020740 500 Micron Screen & Suction Arm Assembly suits JPF 20-32mm (inc. seal kit)
J2020680 Circuit Board (Standard)
J2020972 Pressure Differential Switch Kit
J2320135 Motor/Gearbox Assembly
JPF 40-65mm Series J2020788 Potential Free Circuit Board Conversion Kit
J2010337 Spare Parts Kit to suit 40-65mm JPF Models
J2020730 30 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2020746 50 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2021360 100 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2020736 320 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2020742 500 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2020680 Circuit Board (Standard)
J2020972 Pressure Differential Switch Kit
J2320135 Motor/Gearbox Assembly
J2020788 Potential Free Circuit Board Conversion Kit
JPF 80-200mm SERIES & JFXL Series J2010339 Spare Parts Kit to suit 80-200mm JPF Models
J2020732 30 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020748 50 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2021361 100 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020738 320 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020680 Circuit Board (Standard)
J2020972 Pressure Differential Switch Kit
J2320135 Motor/Gearbox Assembly
J2020788 Potential Free Circuit Board Conversion Kit
