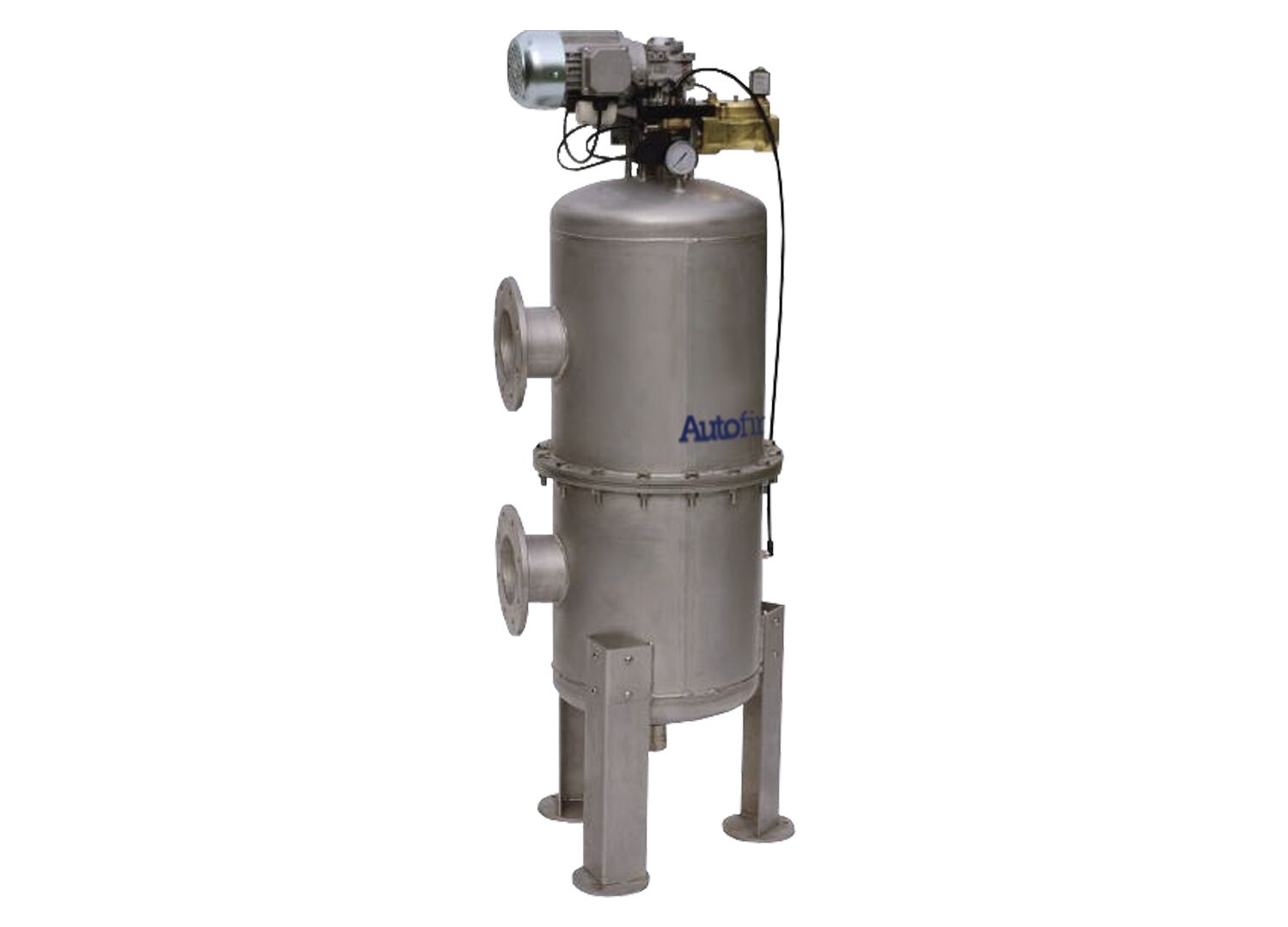

AF3 Series

Autofine

AF3 Series

  • Flows up to 33.0 L/s
  • Pressure differential backwash control
  • Control panel with indication lights and volt free contacts
  • Low consumption for backwash
  • Screen sizes available as detailed below
  • 304 Grade stainless steel housing (316L available)
  • Min operating presssure: 200kPa
  • Max operating pressure: 1,000kPa
  • 80mm (3”) BPSM & DN100/DN150 Flange Inlet/Outlet
  • Backwash counter to monitor number of cleaning cycles performed

Models & Specs

Code Model
S25101501 AF3-80 Auto Self-Cleaning Screen Filter, 80mm BSP
S25101502 AF3-100 Auto Self-Cleaning Screen Filter, DN100
S25101503 AF3-150 Auto Self-Cleaning Screen Filter, DN150
UPGRADES FOR AF3 SERIES
AF3-HP16 AF3 1600kpa High Pressure Upgrade
AF3-IP65 AF3 IP65 Protection Upgrade
AF3-HW90 AF3 90ºC Hot Water Upgrade
AF3-0.5 AF3 0.5um Screen Upgrade

Filtration Rates

Model Inlet/Outlet Filtration degree (μm)
2 3 6 11 20 30 40 50 60 80 100 200 300 400
AF3-80 3" BSPM Max Flow
Rate (m³/h)		 30 20 45
AF3-100 DN100 ISO flanges 30 20 45 45 70
AF3-150 DN150 ISO flanges 30 20 45 45 70 85 100 105 120

Spare Parts

Model Code Description
AF3 Series S25501501 AUTOFINE 1 Micron Screen for AF3
S25501502 AUTOFINE 5 Micron Screen for AF3
S25501503 AUTOFINE 10 Micron Screen for AF3
S25501504 AUTOFINE 20 Micron Screen for AF3
S25501505 AUTOFINE 40 Micron Screen for AF3
S25501506 AUTOFINE 60 Micron Screen for AF3
S25501507 AUTOFINE 80 Micron Screen for AF3
S25501508 AUTOFINE 100 Micron Screen for AF3
S25501509 AUTOFINE 200 Micron Screen for AF3
S25503015 AUTOFINE Suction Arm Assembly to suit AF3
S25504510 AUTOFINE DP Switch Assembly to suit AF1, AF2, AF3, AF4
S25504015 AUTOFINE Backwash Solenoid Valve to suit AF3
S25505002 AUTOFINE Controller to suit AF2, AF3, AF4
S25505011 AUTOFINE Circuit Board to suit AF2, AF3, AF4
