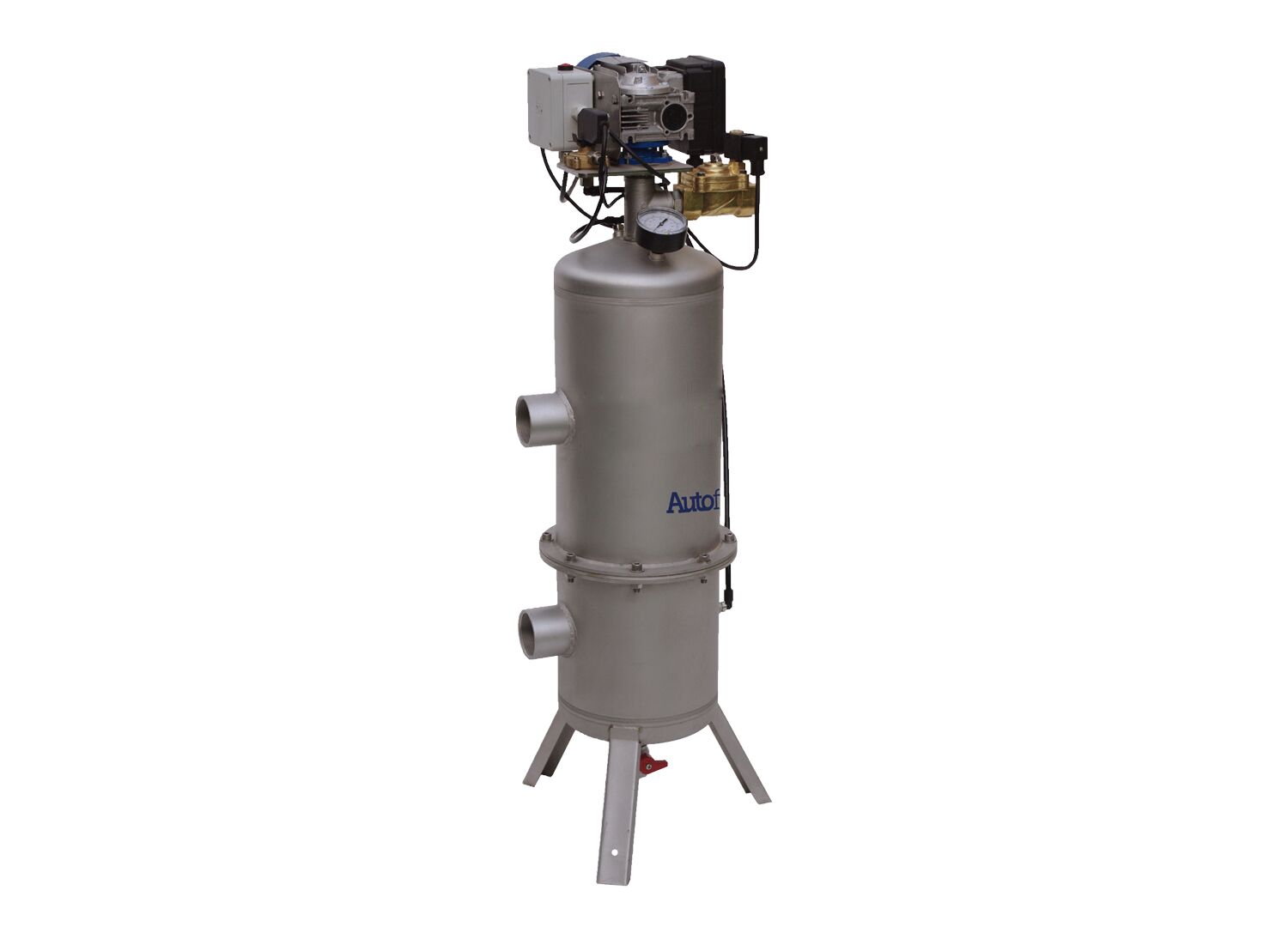

AF2 Series

  • Flows up to 12.5 L/s
  • Pressure differential backwash control
  • Control panel with indication lights and volt free contacts
  • Low consumption for backwash
  • Screen sizes available as detailed below
  • 304 Grade stainless steel housing (316L available)
  • Min operating presssure: 200kPa
  • Max operating pressure: 1,000kPa
  • 50mm BSP, 80mm BSP, DN80 flange inlet/outlet
  • Backwash counter to monitor number of cleaning cycles performed

Models & Specs

Code Model
S25101001 AF2-50 Auto Self-Cleaning Screen Filter, 50mm
S25101002 AF2-80 Auto Self-Cleaning Screen Filter, 80mm
S25101003 AF2-80F Auto Self-Cleaning Screen Filter, DN80
UPGRADES FOR AF2 SERIES
AF2-HP16 AG200 – 1600kpa High Pressure Upgrade
AF2-IP65 AG200 – IP65 Protection Upgrade
AF2-HW90 AG200 – 90ºC High Temperature Upgrade
AF2-0.5 AG200 – 0.5um Screen Upgrade

Filtration Rates

Model Max Flow rate Inlet/Outlet 0.5 1 5 10 20 60 – 500
AF2-50 8m3/h 50mm
12m3/h 50mm
20m3/h 50mm
25m3/h 50mm
AF2-80T 35m3/h 80mm
AF2-80F 45m3/h DN80 flange

This is a tab

This is a tab

Spare Parts

Model Code Description
AF2 Series S25501001 AUTOFINE 1 Micron Screen for AF2
S25501002 AUTOFINE 5 Micron Screen for AF2
S25501003 AUTOFINE 10 Micron Screen for AF2
S25501004 AUTOFINE 20 Micron Screen for AF2
S25501005 AUTOFINE 40 Micron Screen for AF2
S25501006 AUTOFINE 60 Micron Screen for AF2
S25501007 AUTOFINE 80 Micron Screen for AF2
S25501008 AUTOFINE 100 Micron Screen for AF2
S25501009 AUTOFINE 200 Micron Screen for AF2
S25503010 AUTOFINE Suction Arm Assembly to suit AF2
S25504510 AUTOFINE DP Switch Assembly to suit AF1, AF2, AF3, AF4
S25504005 AUTOFINE Backwash Solenoid Valve to suit AF1, AF2
S25505002 AUTOFINE Controller to suit AF2, AF3, AF4
S25505011 AUTOFINE Circuit Board to suit AF2, AF3, AF4
