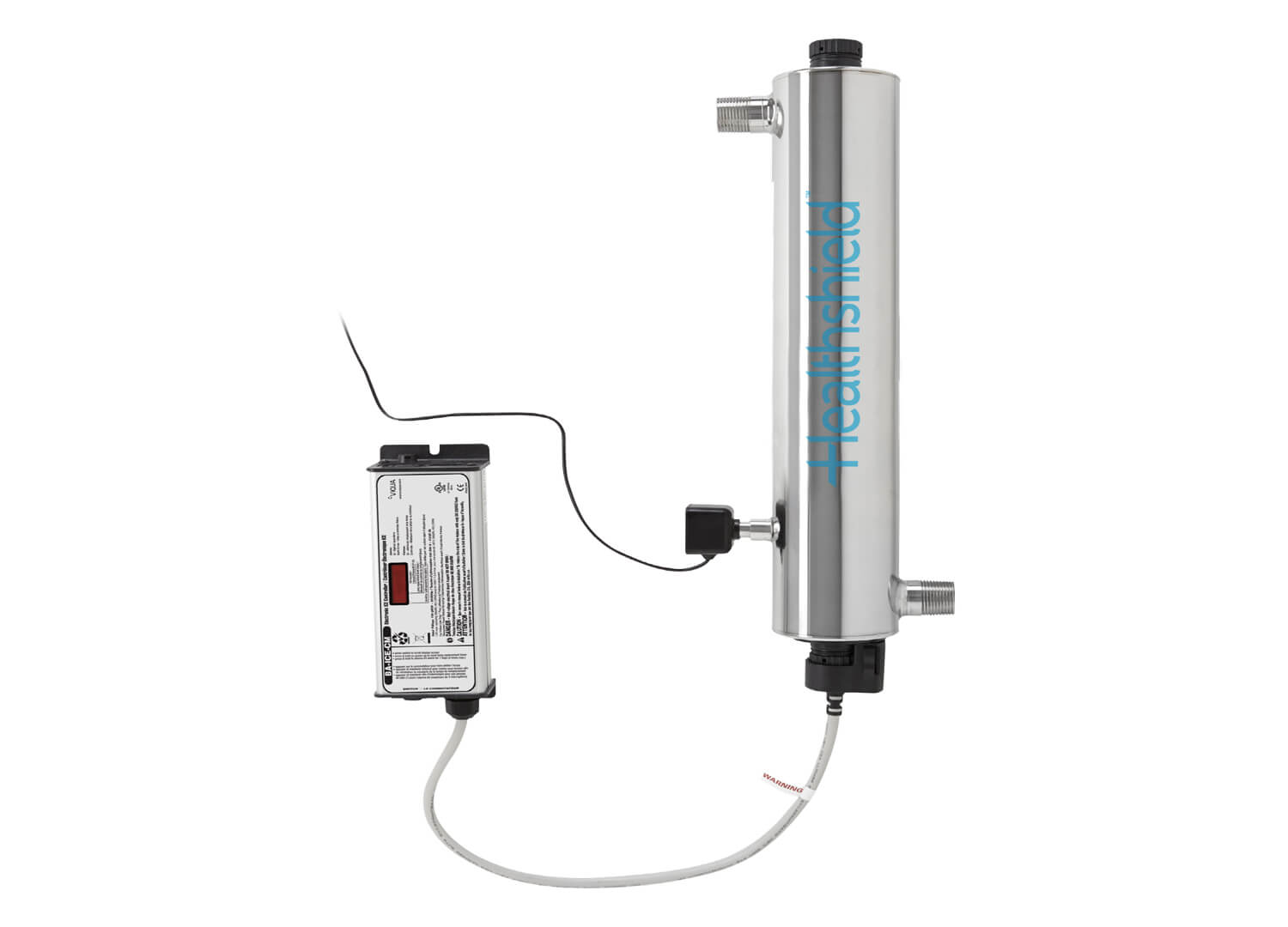

UV-HE 11-15 Series

  • Specially designed and tested Sterilumeā„¢-EX lamps provide consistent and reliable ultraviolet output over the entire life of the lamp to ensure continuous purification
  • Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation
  • UV sensor to provide continuous readout of UV intensity
  • The controller visually displays the remaining lamp life and will go into alarm if the lamp fails
  • The controller has a sealed case to prevent damage from accidental water intrusion and is fully CSA and CE compliant
  • Max operating pressure: 860kPa

Models & Specs

Our Code Description Flow L/M (L/sec)
H00105000 HEALTHSHIELD UV-HE 11, 25mm BSP, 60 Watt, Lamp Fail Alarm, Visual Lamp Life Remaining, UV Sensor (Also: VH410M/2A)
H00105500 HEALTHSHIELD UV-HE 12, 25mm BSP, 70 Watt, Lamp Fail Alarm, Visual Lamp Life Remaining, UV Sensor (Also: VP600M/2A)
H00106500 HEALTHSHIELD UV-HE 14, 40mm BSP, 96 Watt, Lamp Fail Alarm, Visual Lamp Life Remaining, UV Sensor (Also: VP950M/2A)
H00107000 HEALTHSHIELD UV-HE 15, 50mm BSP, 230 Watt, CoolTouch Fan, Lamp/Controller Fail Alarm, (Also: K)
H00107500 HEALTHSHIELD UV-HE 16, 50mm BSP, 230 Watt, CoolTouch Fan, Lamp/Controller Fail Alarm, UV Sensor (Also: K/PLUS)
Upgrades for UV-HE Series
S40500000 Thermal Relief Valve 20mm (3/4″)
S40500001 Thermal Relief Valve 25mm (1″)
S40500002 Thermal Relief Valve 40mm (1 1/4″)
S40500003 Thermal Relief Valve 50mm (2″)

** Based on 16mJ/cm2 dose at 95%

Spare Parts

Model Code Description
UV Lamps (for UV-HE Series) S36RL UV Lamp to suit S12Q-PA
S212RL UV Lamp to suit Healthshield UV-HE 1 (VT1), SQ-PA
S287RL UV Lamp to suit S1Q-PA
S330RL UV Lamp to suit Healthshield UV-HE 2 (S2Q-PA)
S463RL UV Lamp to suit S5Q-PA
S810RL UV Lamp to suit S8Q-PA
RL-40/867T5 UV Lamp to suit 6 (UV700)
RL-100/1197T6 UV Lamp to suit Healthshield UV-HE 8 & 10 (UV3000 & UV6000)
RL-110/1197T5 UV Lamp to suit Healthshield UV-HE 7 & 9 (UV1500 & UV5000)
RL-84-893T5 UV Lamp to suit S8Q-PA
S100RL-HO UV Lamp to suit SP100-HO, SPV-1.5
S150RL-HO UV Lamp to suit Healthsheild UV-HE 3 (VH150, SPV-2.5, SP150-HO)
S200RL-HO UV Lamp to suit Healthsheild UV-HE 4 (SP200-HO/2, VH200)
S320RL-HO UV Lamp to suit SP320-HO
S410RL-HO UV Lamp to suit Healthshield UV-HE 5, UV-HE 11 (VH410, VH410M/2A)
S600RL-HO UV Lamp to suit Healthshield UV-HE 12 (VP600, VP600M/2A)
S740RL-HO UV Lamp to suit Healthshield UV-HE 13 (SP740HO/2)
S950RL-HO UV Lamp to suit Healthshield UV-HE 14 (VP950M/2A, SP950HO/2)
S740RL-4C UV Lamp to suit Healthshield UV-HE 17, UV-HE 18 (SHF-140, SHFM-140)
S950RL-4C UV Lamp to suit Healthshield UV-HE 19, UV-HE 20 (SHF-180, SHFM-180)
602805 UV Lamp to suit D4
602806 UV Lamp to suit E4, E4 Plus, E4-V
602807 UV Lamp to suit F/Plus, F4/Plus, F4-V, PRO15
602854 UV Lamp to suit G/PLUS, PRO10
602855 UV Lamp to suit H/PLUS, PRO20
602856 UV Lamp to suit J/Plus, K/Plus, PRO30, PRO50, S80, SM80, SV50
UV Quartz Sleeve/Thimble (for UV-HE Series) QS-001 Quartz Sleeve to suit VH200, S1Q-PA
QS-012 Quartz Sleeve to suit S12Q-PA
QS-150 Quartz Sleeve to suit Healthshield UV-HE 3 (VH150, SPV-2.5, SP150-HO)
QS-180 Quartz Sleeve to suit UV-HE 18, UV-HE 20 (SHF-180, SHFM-180)
QS-200 Quartz Sleeve to suit Healthshield UV-HE 4 (SP200-HO/2, VH200)
QS-212 Quartz Sleeve to suit VT1, SQ-PA
QS-320 Quartz Sleeve to suit SP320-HO
QS-330 Quartz Sleeve to suit Healthshield UV-HE 2 (S2Q-PA)
QS-410 Quartz Sleeve to suit SC-410, SCM-410, SPV-410, SP410-HO, SPV-8
QS-463 Quartz Sleeve to suit S5Q-PA
QS-600 Quartz Sleeve to suit SPV-600, SP600-HO, SPV-12
QS-740 Quartz sleeve to suit Healthshield UV-HE 13 (SP740HO/2)
QS-810 Quartz Sleeve to suit S8Q-PA
QS-950 Quartz Sleeve to suit SP950HO/2
QS-212D Quartz Sleeve to suit SC1
QS-287D Quartz Sleeve to suit SC2.5
QSO-410 Quartz Sleeve to suit Healthshield UV-HE 5, UV-HE 11 (VH410, VH410M/2A)
QSO-600 Quartz Sleeve to suit Healthshield UV-HE 12 (VP600, VP600M/2A)
QSO-950 Quartz Sleeve to suit Healthshield UV-HE 14 (VP950M/2A, SP950HO/2)
RQD-895 UV Quartz Thimble to suit UV-HE 6 (700)
RQS-1190 UV Quartz Sleeve to suit UV-HE 8 & 10 (UV3000 & UV6000)
RQS-1181 UV Quartz Sleeve to suit UV-HE 7 & 9 (UV1500 & UV5000)
RQD-1190 UV Quartz Thimble to suit UV-HE 8 & 10 (UV3000 & UV6000)
602732 Quartz Sleeve to suit D4
602733 Quartz Sleeve to suit E4
602734 Quartz Sleeve to suit F4, PRO15
602974 Quartz Sleeve to suit PRO10
602975 Quartz Sleeve to suit PRO20
602976 Quartz Sleeve to suit PRO30, PRO50, SV50
UV Controller Kits BA-ICE-S UV Controller to suit UV-HE 2, UV-HE 3, UV-HE 4 (SQ-PA)
BA-ICE-C UV Controller to suit VP600/2A, VP950/2A
BA-ICE-CL UV Controller to suit UV-HE 5 (VH410/2A)
4-BE-425-U-VF UV Controller Kit to suit UV-HE 6 (UV700)
4-BE800D-ECO UV Controller to suit UV-HE 7 & UV-HE 9, (UV1500 & UV5000)
4-BE800D-14/30ECO UV Controller to suit UV-HE 8 & UV-HE 10, (UV3000 & UV6000)
4-UV/MS-2V3 UV Monitoring System to suit UV-HE 6, 7, 8 (UV700, UV1500, UV3000)
BA-ICE-SO UV Controller to suit S2Q-OZ, S5Q-OZ series
BA-ICE-CM Ballast Controller to suit UV-HE 11,12,14 (VH410M, VP600M, VP950M)
BA-ICE-HF Ballast Controller to suit UV-HE
BA-ICE-M-HF Ballast Controller to suit UV-HE 19, UV-HE 20
650709-003 Controller Kit to suit PRO10
650709-006 Ballast Controller to suit PRO20
650709-009 Controller Kit to suit PRO30
650716-007 Controller Kit to suit D,E,F,PRO7,PRO15
650709-013 Controller Kit to suit PRO24-186
650733R-002 Ballast Controller to suit D4, D4-V
660018-R Ballast Controller to suit K, S80
660019-R Ballast Controller to suit PRO50
660020-R Ballast Controller to suit PRO50
Quartz Sleeve O-Ring (for UV-HE Series) 410867 Quartz Sleeve Oring to suit UV-HE 2, 3, 4, 5, 11, 12, 14, 15
11-3 Quartz Sleeve/Thimble Oring to suit UV-HE 6, 7 & 9
11-324 Quartz Sleeve/Thimble Oring to suit UV-HE 8 & 10
H002233 Quartz Sleeve O-Ring for PRO Series, G/Plus, H/Plus, J/Plus, K/Plus
UV Sensor Assembly (for UV-HE Series) 254NM-C1 Sensor to suit VHM
254NM-HF Sensor to suit SHFM
650580 Sensor to suit K/PLUS, PRO
650703 Sensor to suit D,E,F,PRO7,PRO15
4-35-3 UV Sensor Assembly to suit UV-HE 6, 7, 8, 9, 10
Miscellaneous 4-HM-R100 Hour Meter to suit UV-HE 6, 7, 8, 9, 10
8-4-1 Large Blue Cap to suit UV-HE 6, 7, 9
8-4 Small Blue Cap to suit UV-HE 7, 9
8-40 Large Black End Cap to suit UV-HE 8, 10
8-9 Viewport Compression Nut to suit UV-HE 6, 7, 8, 9, 10
10-VPA-GL Viewport Glass Assembly Kit to suit UV-HE 6, 7, 8, 9, 10
8-51 Compression Nut to suit UV-HE 6
8-53 Compression Nut to suit UV-HE 7, 9
8-301 Compression Nut to suit UV-HE 8, 10 – sleeve style units
8-301R Compression Nut to suit UV-HE 8, 10 – thimble style units
8-11 Viewport Inner Bushing to suit UV-HE 6, 7, 8, 9, 10
11-6 Viewport Glass O-ring to suit UV-HE 6, 7, 8, 9, 10
11-10 Lamp O-ring Seal to suit UV-HE 8, 9
RN-001/1 Retaining Nut to suit UV-HE 2, 3, 4, 5, 11, 12, 14, 15 (SQ/SSM/SC/SCM/SP/SPV/VT/VH/VP series)
270276-R Lamp Connector Base to suit UV-HE 2, 3, 4, 5, 11, 12, 14, 15 (SQ/SSM/SC/SCM/SP/SPV/VT/VH/VP series)
SP008 Quartz Sleeve Spring to suit UV-HE 2, 3, 4, 5, 11, 12, 14, 15
650630 Cool-Touch Fan to suit PRO, H, H+, K, K+ series
