Healthshield

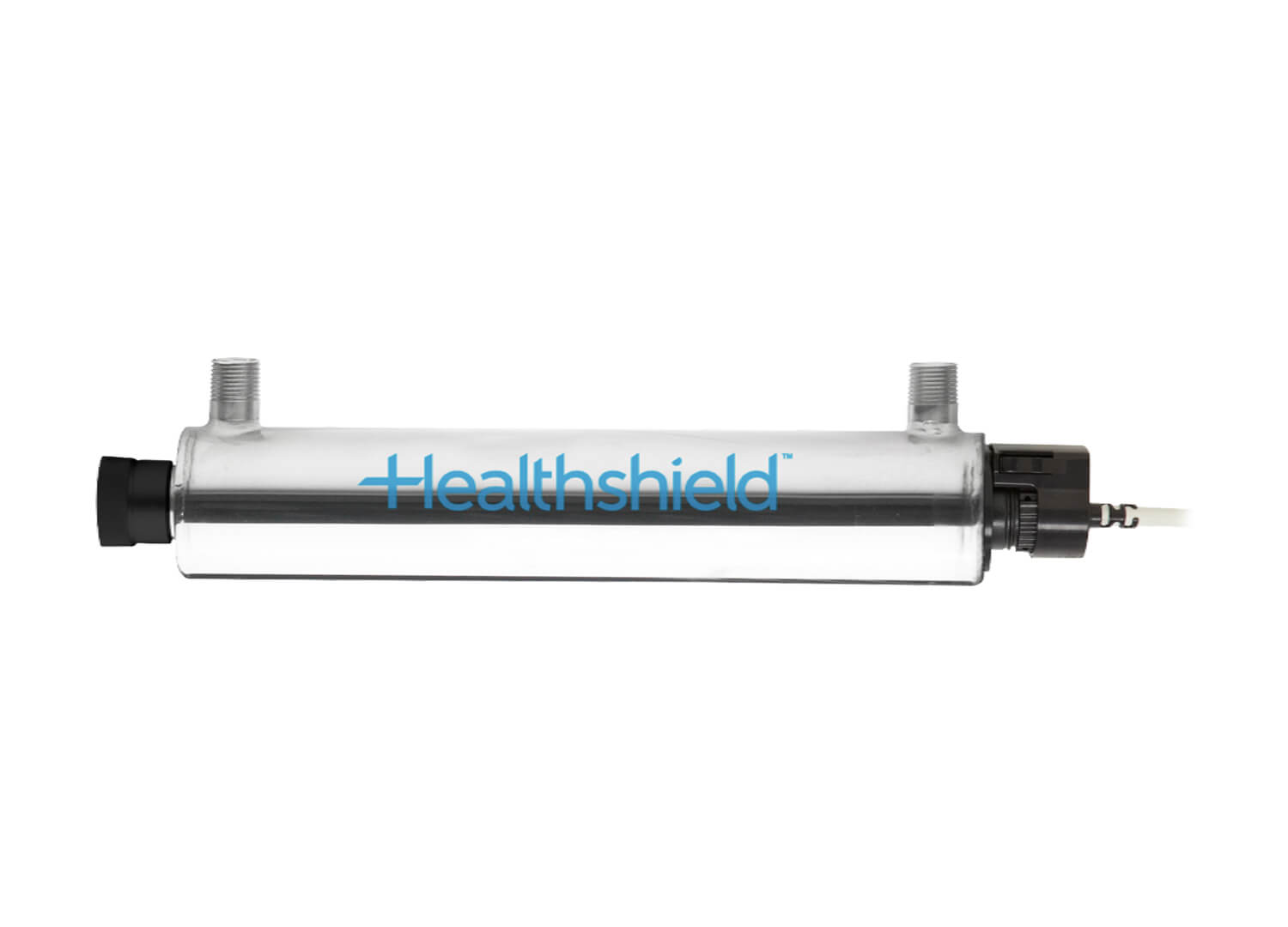

UV-HE 1-5 Series

  • Specially designed and tested Sterilume™-EX lamps provide consistent and reliable ultraviolet output over the entire life of the lamp to ensure continuous purification
  • Built with a durable stainless steel chamber to prolong life and eliminate ultraviolet light degradation
  • The controller visually displays the remaining lamp life and will go into alarm if the lamp fails
  • The controller has a sealed case to prevent damage from accidental water intrusion and is fully CSA and CE compliant
  • Max operating pressure: 860kPa

Models & Specs

Our Code Description Flow L/M (L/sec)
H00100200 HEALTHSHIELD UV-HE 1, 15mm BSP, 13 Watt, Power On Indicator (Also: VT1/2A) 8
H00100500 HEALTHSHIELD UV-HE 2, 15mm BSP, 22 Watt, Lamp Fail Alarm, Visual Lamp Life remaining (Also: S2Q-PA/2A) 18
H00101000 HEALTHSHIELD UV-HE 3, 20mm BSP, 30 Watt, Lamp Fail Alarm, Visual Lamp Life remaining (Also: VH150/2A) 42
H00101200 HEALTHSHIELD UV-HE 4, 20mm BSP, 46 Watt, Lamp Fail Alarm, Visual Lamp Life remaining (Also: VH200/2A) 40-60
H00102000 HEALTHSHIELD UV-HE 5, 25mm BSP, 60 Watt, Lamp Fail Alarm, Visual Lamp Life remaining (Also: VH410) 130
Upgrades for UV-HE Series
S40500000 Thermal Relief Valve 20mm (3/4″)
S40500001 Thermal Relief Valve 25mm (1″)
S40500002 Thermal Relief Valve 40mm (1 1/4″)
S40500003 Thermal Relief Valve 50mm (2″)

** Based on 16mJ/cm2 dose at 95%

Spare Parts

Model Code Description
UV Spares 1-5 Series S212RL UV Lamp to suit Healthshield UV-HE 1 (VT1), SQ-PA
S330RL UV Lamp to suit Healthshield UV-HE 2 (S2Q-PA)
S150RL-HO UV Lamp to suit Healthsheild UV-HE 3 (VH150, SPV-2.5, SP150-HO)
S200RL-HO UV Lamp to suit Healthsheild UV-HE 4 (SP200-HO/2, VH200)
S410RL-HO UV Lamp to suit Healthshield UV-HE 5, UV-HE 11 (VH410, VH410M/2A)
QS-150 Quartz Sleeve to suit Healthshield UV-HE 3 (VH150, SPV-2.5, SP150-HO)
QS-200 Quartz Sleeve to suit Healthshield UV-HE 4 (SP200-HO/2, VH200)
QS-330 Quartz Sleeve to suit Healthshield UV-HE 2 (S2Q-PA)
QSO-410 Quartz Sleeve to suit Healthshield UV-HE 5, UV-HE 11 (VH410, VH410M/2A)
BA-ICE-S UV Controller to suit UV-HE 2, UV-HE 3, UV-HE 4 (SQ-PA)
BA-ICE-CL UV Controller to suit UV-HE 5 (VH410/2A)
410867 Quartz Sleeve Oring to suit UV-HE 2, 3, 4, 5, 11, 12, 14, 15
Miscellaneous 4-HM-R100 Hour Meter to suit UV-HE 6, 7, 8, 9, 10
8-4-1 Large Blue Cap to suit UV-HE 6, 7, 9
8-4 Small Blue Cap to suit UV-HE 7, 9
8-40 Large Black End Cap to suit UV-HE 8, 10
8-9 Viewport Compression Nut to suit UV-HE 6, 7, 8, 9, 10
10-VPA-GL Viewport Glass Assembly Kit to suit UV-HE 6, 7, 8, 9, 10
8-51 Compression Nut to suit UV-HE 6
8-53 Compression Nut to suit UV-HE 7, 9
8-301 Compression Nut to suit UV-HE 8, 10 – sleeve style units
8-301R Compression Nut to suit UV-HE 8, 10 – thimble style units
8-11 Viewport Inner Bushing to suit UV-HE 6, 7, 8, 9, 10
11-6 Viewport Glass O-ring to suit UV-HE 6, 7, 8, 9, 10
11-10 Lamp O-ring Seal to suit UV-HE 8, 9
RN-001/1 Retaining Nut to suit UV-HE 2, 3, 4, 5, 11, 12, 14, 15 (SQ/SSM/SC/SCM/SP/SPV/VT/VH/VP series)
270276-R Lamp Connector Base to suit UV-HE 2, 3, 4, 5, 11, 12, 14, 15 (SQ/SSM/SC/SCM/SP/SPV/VT/VH/VP series)
SP008 Quartz Sleeve Spring to suit UV-HE 2, 3, 4, 5, 11, 12, 14, 15
650630 Cool-Touch Fan to suit PRO, H, H+, K, K+ series
254NM-C1 Sensor to suit VHM
254NM-HF Sensor to suit SHFM
650580 Sensor to suit K/PLUS, PRO
650703 Sensor to suit D,E,F,PRO7,PRO15
4-35-3 UV Sensor Assembly to suit UV-HE 6, 7, 8, 9, 10
