SKAN FMA-9000 Series

Skan FMA Self-Cleaning Filters

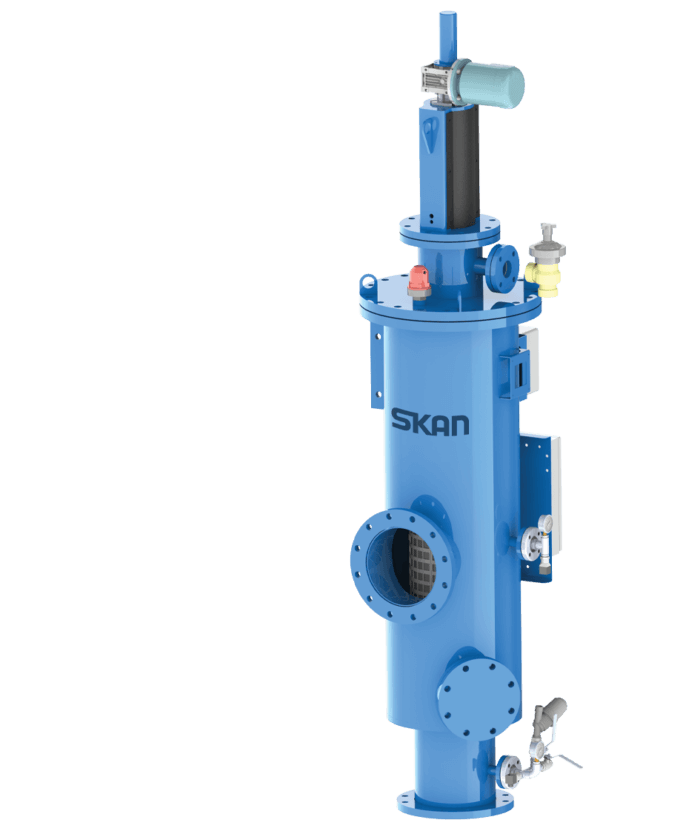

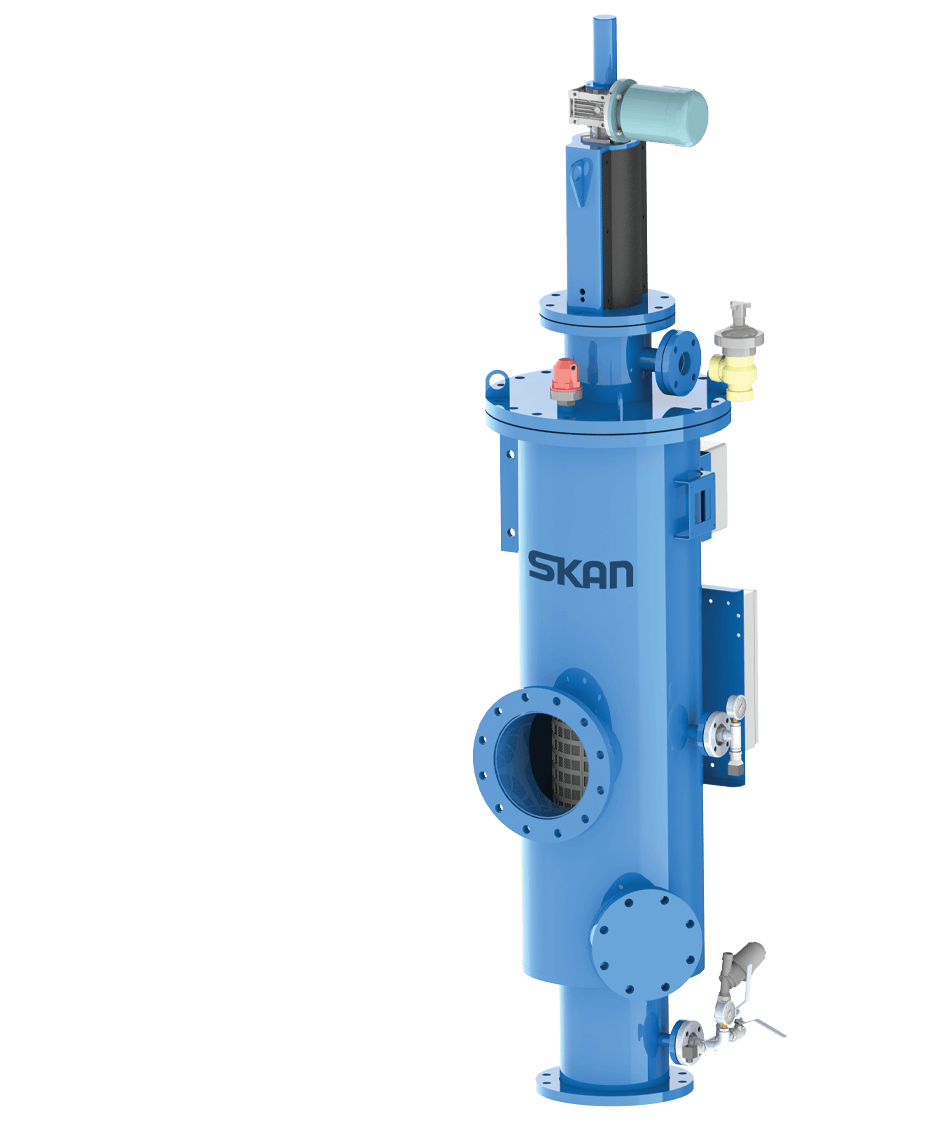

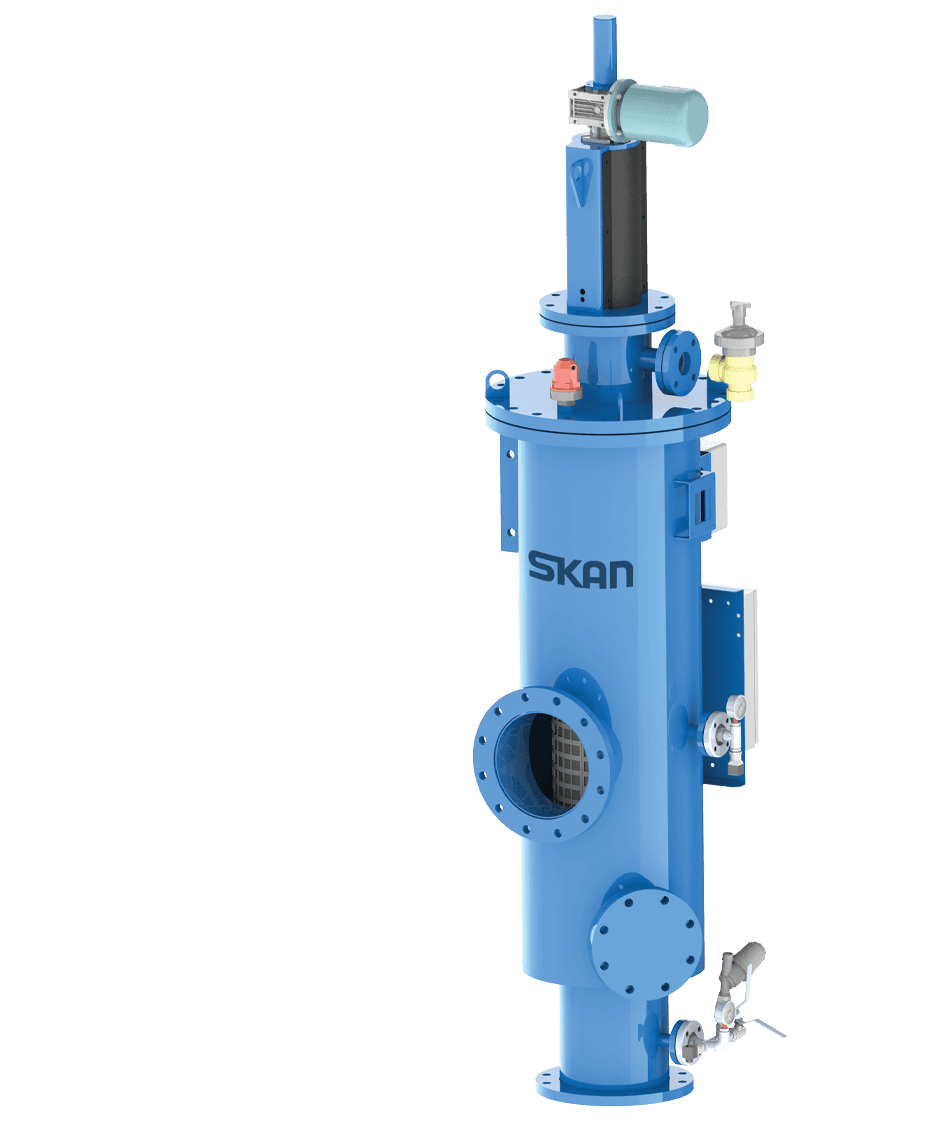

SKAN FMA-9000 Series

Provides reliable filtration across a variety of applications—the SKAN FMA-9000 automatic mesh filter is designed to meet the needs of industries such as drinking water facilities, desalination plants, food production, co-generation plants, chemical industries, cooling towers, field irrigation, golf courses, and as a physical barrier against zebra mussels.

FEATURES

  • Electric, in-line design is specially built for mounting in multiple configurations within high-flow water networks.
  • Operates at very low working pressures, making it ideal for protecting pumping systems in industrial applications.

Models & Specs

Model Code Inlet/Outlet Connection Size Min. Max. Operating  Pressure (Bar/PSI) Filtering surface (cm² / ft²) Filtration degrees (μm) Backwashing Flowrate (M³/H / GPM)
FMA-9000 Series 9006 DN-150 (6’’) 2 – 10 / 29 – 145 (Any others, ask SF) 7990 / 8,60 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 15 / 66
FMA-9000 Series 9008 DN-200 (8’’) 2 – 10 / 29 – 145 (Any others, ask SF) 10600 / 11,41 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 20 / 88
FMA-9000 Series 9010 DN-250 (10’’) 2 – 10 / 29 – 145 (Any others, ask SF) 13210 / 14,22 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 25 / 110
FMA-9000 Series 9012 DN-300 (12’’) 2 – 10 / 29 – 145 (Any others, ask SF) 16500 / 17,76 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 20 / 88
FMA-9000 Series 9014 DN-350 (14’’) 2 – 10 / 29 – 145 (Any others, ask SF) 21300 / 22,93 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 25 / 110
