SKAN FMA-5000 Series

Skan FMA Self-Cleaning Filters

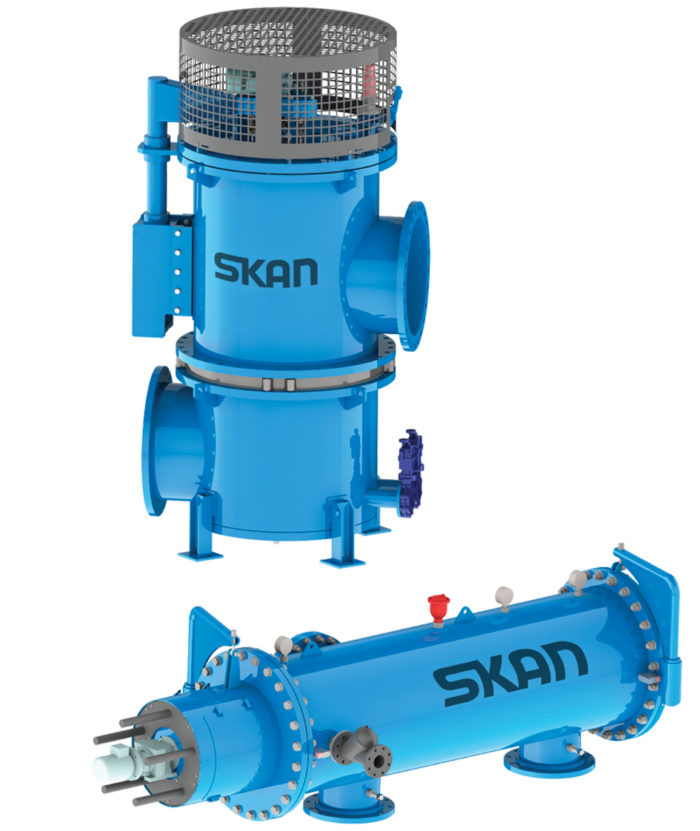

SKAN FMA-5000 Series

Provides efficient filtration in space-limited environments—the SKAN FMA-5000 series automatic mesh filters are designed to meet the demanding filtration needs of industrial plants with high-quality standards.

FEATURES

  • Compact design requires minimal space while maximising filtration capacity for high-efficiency performance.
  • Incorporates five internal cartridges to maximise filtration surface, ensuring optimal filtration efficiency.
  • Ideal for chemical plants, oil & gas facilities, and other industrial settings with strict filtration requirements.
  • Built to handle high flow rates, making it perfect for both municipal and industrial applications.
  • Delivers precise filtration for applications with low filtration degrees, ensuring top-quality output.

Models & Specs

Model Code Inlet/Outlet Connection Size Min. Max. Operating  Pressure (Bar/PSI) Filtering surface (cm² / ft²) Filtration degrees (μm) Backwashing Flowrate (M³/H / GPM)
FMA-5000 series 5020 DN-500 (20’’) 2 – 10 (If others, ask SF) 55000 50, 20 80
FMA-5000 series 5003V DN-500 (20’’) 2 – 10 (If others, ask SF) 28200 100, 74, 50, 25, 20, 10 70
FMA-5000 series 5006V DN-700 (28’’) 2 – 10 (If others, ask SF) 56400 100, 74, 50, 25, 20, 10 14 / 70
FMA-5000 series 5009 DN-800 (32’’) 2 – 10 (If others, ask SF) 84600 100, 74, 50, 25, 20, 10 210 / 70
FMA-5000 series 5012V DN-900 (36’’) 2 – 10 (If others, ask SF) 112800 100, 74, 50, 25, 20, 10 280 / 70
FMA-5000 series 5015V DN-1000 (40’’) 2 – 10 (If others, ask SF) 141000 100, 74, 50, 25, 20, 10 350 / 70
