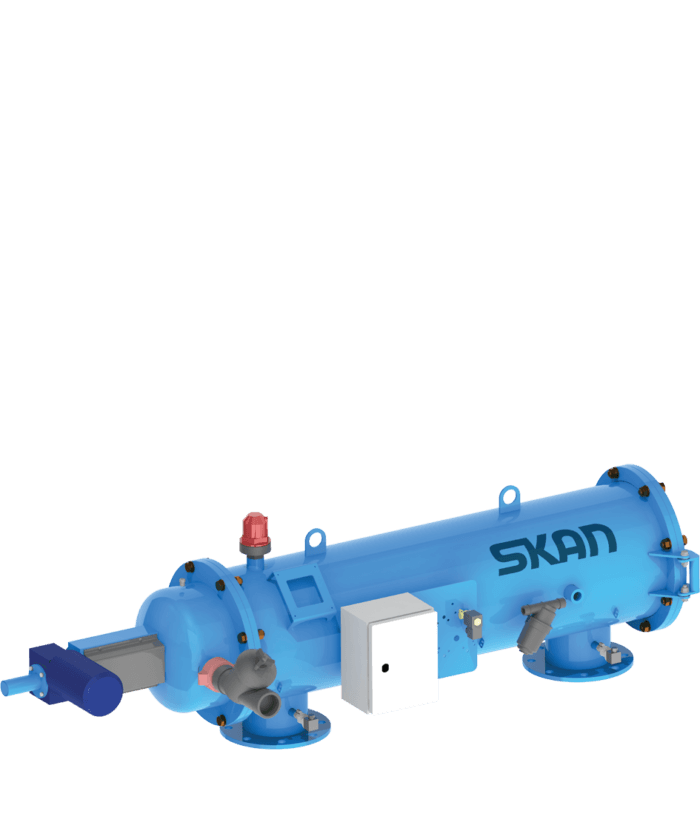

SKAN FMA-4000E Series

SKAN FMA-4000E Series

Delivers efficient, high-flow filtration for powered installations—the SKAN FMA 4000E series automatic electric screen filters are ideal for applications with a reliable energy supply.

FEATURES

  • Advanced cartridge design increases the filtration surface, enabling efficient handling of higher flow rates.
  • Electric operation ensures consistent, reliable performance in installations with access to power.
  • Uses minimal water during cleaning, lowering operational costs and supporting environmental sustainability.
  • Injected mesh cleaning cartridge provides continuous, automated cleaning, reducing maintenance requirements.
  • Well suited to energy-supported installations across a wide range of industries, offering flexible and effective filtration solutions.

Models & Specs

Model Code Inlet/Outlet Connection Size Min. Max. Operating  Pressure (Bar/PSI) Filtering surface (cm² / ft²) Filtration degrees (μm) Backwashing Flowrate (M³/H / GPM)
FMA-4000E series 4003E DN-80 (3”) 2 – 10 / 29 – 145 (Any others, ask SF ) 2475 / 2,66 1000, 500, 300, 200, 125, 74 5 / 22
FMA-4000E series 4004E DN-100 (4”) 2 – 10 / 29 – 145 (Any others, ask SF ) 4950 / 5,32 1000, 500, 300, 200, 125, 74 10 / 44
FMA-4000E series 4006E DN-150 (6”) 2 – 10 / 29 – 145 (Any others, ask SF ) 7425 / 7,99 1000, 500, 300, 200, 125, 74 15 / 66
FMA-4000E series 4008E DN-200 (8”) 2 – 10 / 29 – 145 (Any others, ask SF ) 9900 / 10,65 1000, 500, 300, 200, 125, 74 20 / 8
FMA-4000E series 4010E DN-250 (10”) 2 – 10 / 29 – 145 (Any others, ask SF ) 12375 / 13,32 1000, 500, 300, 200, 125, 74 25 / 110
