SKAN FMA-4000E + ACB Series

Skan FMA Self-Cleaning Filters

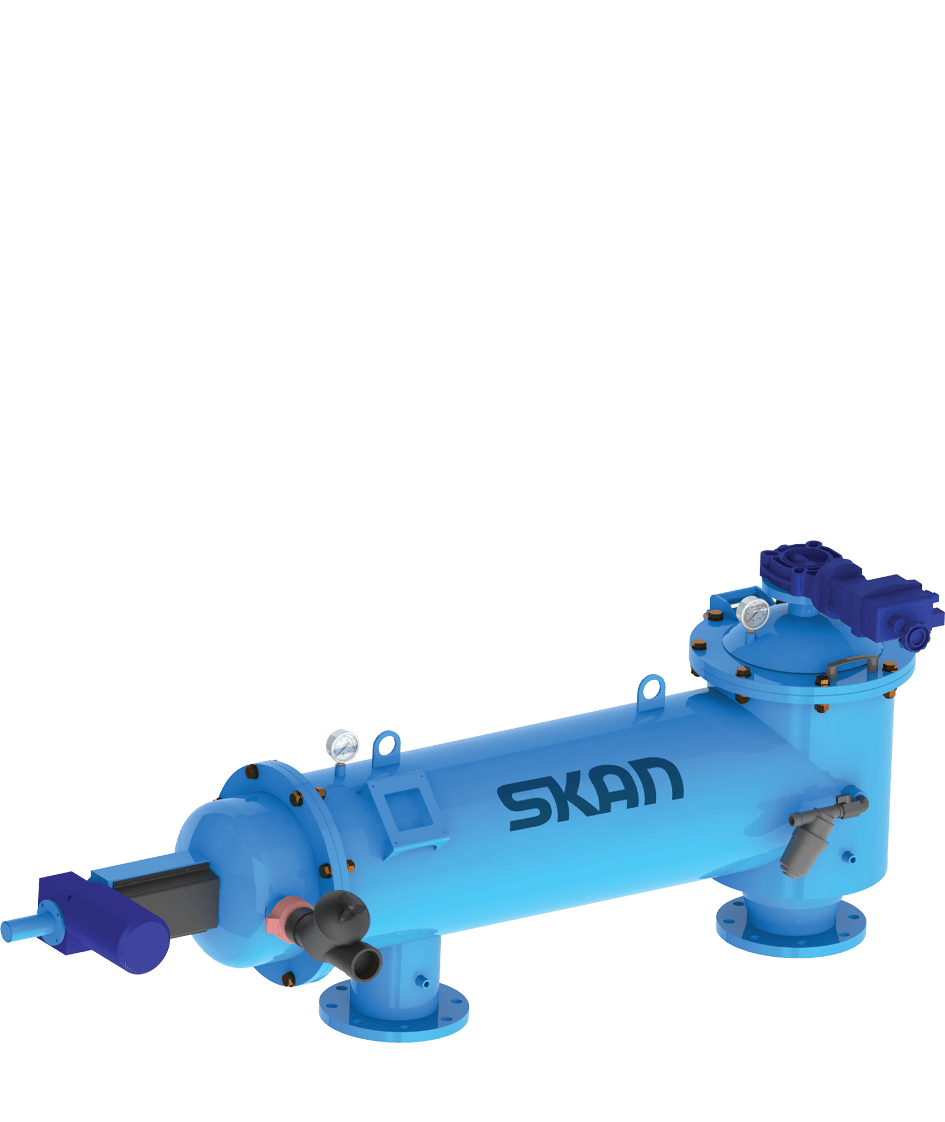

SKAN FMA-4000E + ACB Series

Delivers high-capacity filtration with minimal maintenance—the SKAN FMA-4000E+ACB dual-stage automatic screen filters are built for electrical installations handling large particles in demanding conditions.

FEATURES

  • Effectively filters large particles, reducing the risk of clogging and lowering maintenance requirements.
  • Maximises filtration capacity with an advanced cartridge design that increases the filter area and supports high flow rates.
  • Automatic cleaning system keeps the filter mesh clear, minimising manual maintenance.
  • Uses very little water during cleaning, helping to reduce operating costs and support sustainable practices.
  • Electric drive ensures consistent, efficient performance in powered installations.
  • Ideal for industries managing large-particle filtration with minimal upkeep, such as food production and processing.

Models & Specs

Model Code Inlet/Outlet Connection Size Min. Max. Operating  Pressure (Bar/PSI) Filtering surface (cm² / ft²) Filtration degrees (μm) Backwashing Flowrate (M³/H / GPM)
FMA-4000E + ACB series 4003E+ABC DN-80 (3”) 2 – 10 / 29 – 145 (Any others, ask SF ) 2475 / 2,66 1000, 500, 300, 200, 125, 74 3 / 13
FMA-4000E + ACB series 4004E+ABC DN-100 (4”) 2 – 10 / 29 – 145 (Any others, ask SF ) 4950 / 5,32 1000, 500, 300, 200, 125, 74 6,5 / 29
FMA-4000E + ACB series 4006E+ABC DN-150 (6”) 2 – 10 / 29 – 145 (Any others, ask SF ) 7425 / 7,99 1000, 500, 300, 200, 125, 74 14 / 62
FMA-4000E + ACB series 4008E+ABC DN-200 (8”) 2 – 10 / 29 – 145 (Any others, ask SF ) 9900 / 10,65 1000, 500, 300, 200, 125, 74 23 / 101
FMA-4000E + ACB series 4010E+ABC DN-250 (10”) 2 – 10 / 29 – 145 (Any others, ask SF ) 12375 / 13,32 1000, 500, 300, 200, 125, 74 28 / 123
