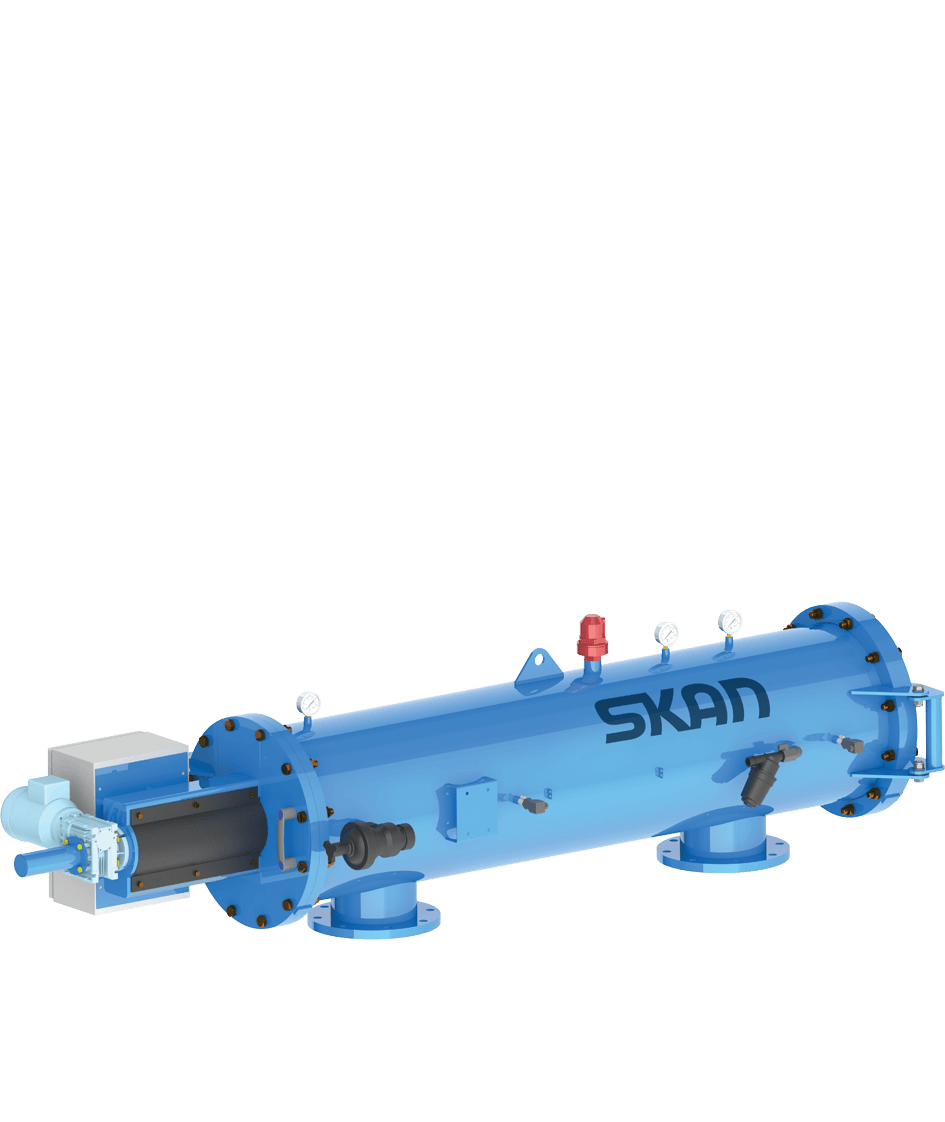

SKAN FMA-2000 Series

Skan FMA Self-Cleaning Filters

SKAN FMA-2000 Series

Provides versatile, reliable filtration across a wide range of flow rates and conditions—the SKAN FMA 2000 series automatic screen filters are built to perform in diverse industrial environments.

FEATURES

  • Handles a broad range of filtration degrees and flow rates, making it suitable for industries from drinking water to food production.
  • Delivers consistent performance in extreme environments, supporting continuous operation.
  • Can be configured into modular filtering stations, improving system efficiency while operating as a single integrated unit.
  • Operates with minimal head loss, boosting energy efficiency and helping reduce running costs.
  • Well suited to applications such as desalination plants, co-generation plants, chemical industries, cooling towers, field irrigation, and protection against zebra mussels.

Models & Specs

Model Code Inlet/Outlet Connection Size Min. Max. Operating  Pressure (Bar/PSI) Filtering surface (cm² / ft²) Filtration degrees (μm) Backwashing Flowrate (M³/H / GPM)
FMA-2000 Series 2003 DN-80 (3’’) 2 – 10 (If others, ask SF) 2650 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 5
FMA-2000 Series 2004 DN-100 (4’’) 2 – 10 (If others, ask SF) 5380 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 10
FMA-2000 Series 2006 DN-150 (6’’) 2 – 10 (If others, ask SF) 7990 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 15
FMA-2000 Series 2008 DN-200 (8’’) 2 – 10 (If others, ask SF) 10600 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 20
FMA-2000 Series 2010 DN-250 (10’’) 2 – 10 (If others, ask SF) 13210 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 25
FMA-2000 Series 2012 DN-300 (12’’) 2 – 10 (If others, ask SF) 16500 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 20
FMA-2000 Series 2014 DN-350 (14’’) 2 – 10 (If others, ask SF) 21300 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 25
