SKAN FMA-11000 Series

Skan FMA Self-Cleaning Filters

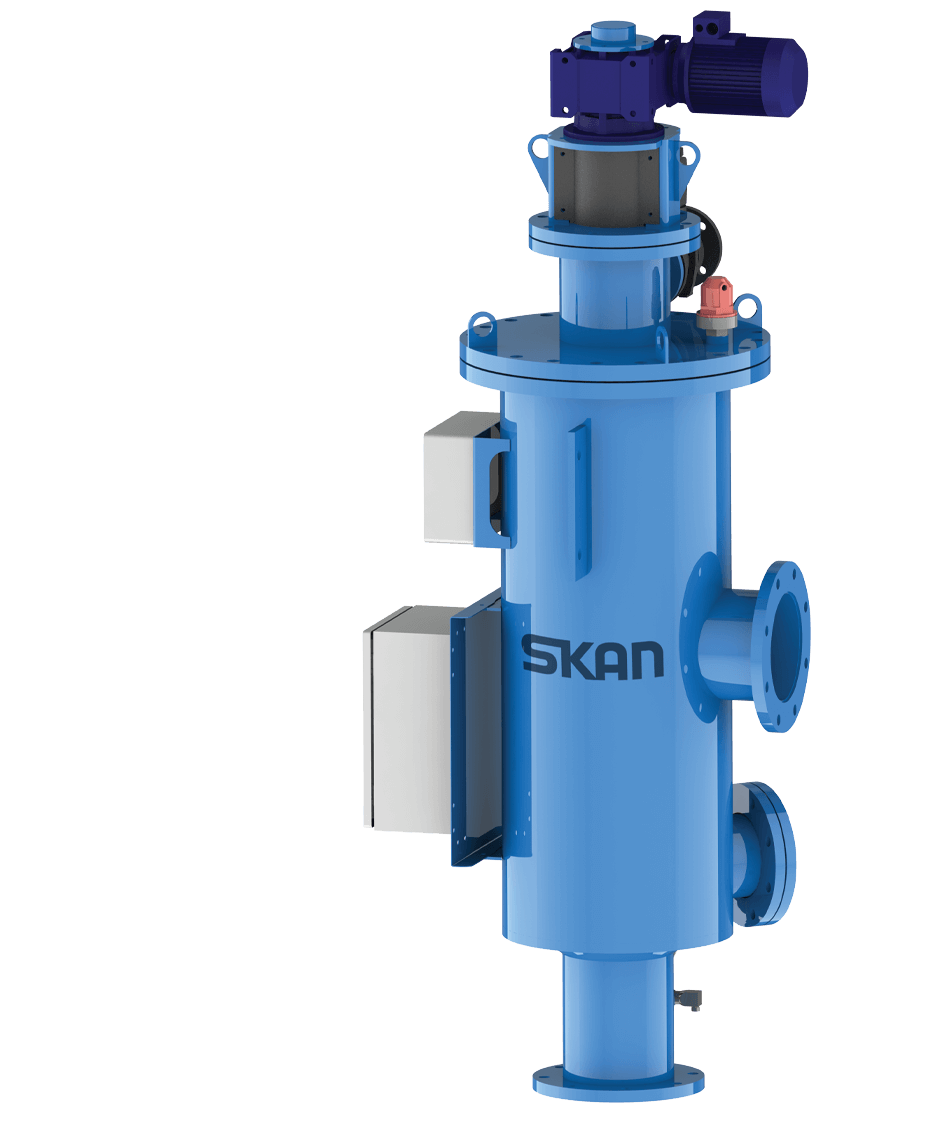

SKAN FMA-11000 Series

Delivers reliable, high-precision filtration for demanding environments—the SKAN FMA-11000 series automatic mesh filters are built to handle large solids with ease, making them ideal for industrial, municipal, and agricultural applications.

FEATURES

  • Efficiently removes large solids with a scraper-based cleaning system, ensuring continuous operation and reducing maintenance.
  • Provides clean, reliable results in high-precision filtration applications.
  • Vertical design maximises filtration surface while saving on installation space.
  • Offers effective roughing filtration, particularly well suited to irrigation systems and municipal water treatment.
  • Ideal for use in drinking water facilities, desalination plants, food production, co-generation plants, chemical industries, cooling towers, field irrigation, and golf courses.
  • Engineered for tough conditions, delivering consistent filtration across a wide range of applications.

Models & Specs

Model Code Inlet/Outlet Connection Size Min. Max. Operating  Pressure (Bar/PSI) Filtering surface (cm² / ft²) Filtration degrees (μm) Backwashing Flowrate (M³/H / GPM)
FMA-11000 Series 11006 DN-150 (6’’) 2 – 10 / 29 – 145 (Any others, ask SF) 7990 / 8,60 4000, 3000, 2000, 1500, 1000 50 / 220
FMA-11000 Series 11008 DN-200 (8’’) 2 – 10 / 29 – 145 (Any others, ask SF) 10600 / 11,41 4000, 3000, 2000, 1500, 1000 50 / 220
FMA-11000 Series 11010 DN-250 (10’’) 2 – 10 / 29 – 145 (Any others, ask SF) 13210 / 14,22 4000, 3000, 2000, 1500, 1000 50 / 220
FMA-11000 Series 11012 DN-300 (12’’) 2 – 10 / 29 – 145 (Any others, ask SF) 16500 / 17,76 4000, 3000, 2000, 1500, 1000 70 / 308
FMA-11000 Series 11014 DN-350 (14’’) 2 – 10 / 29 – 145 (Any others, ask SF) 21300 / 22,93 4000, 3000, 2000, 1500, 1000 70 / 308
