SKAN FMA-10000 Series

Skan FMA Self-Cleaning Filters

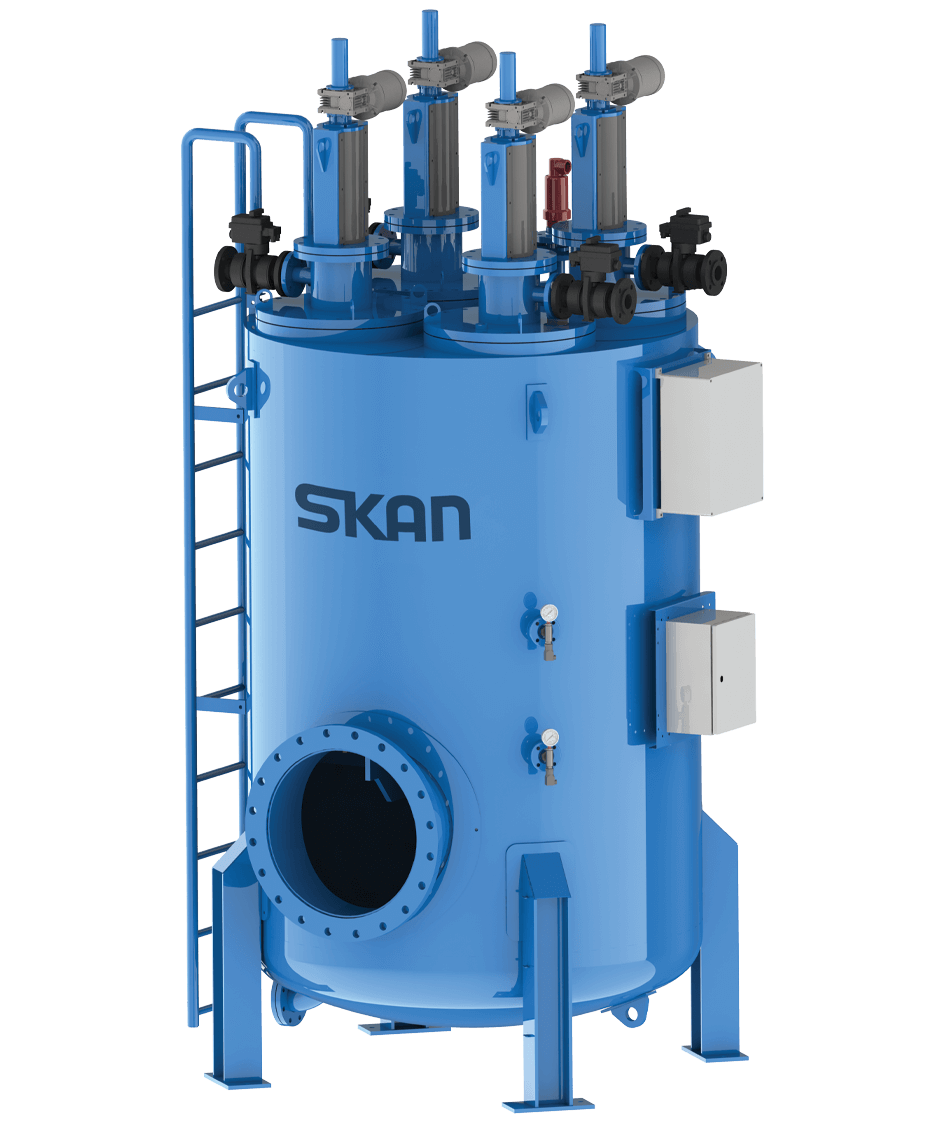

SKAN FMA-10000 Series

Delivers powerful, space-saving filtration for high-demand systems—the SKAN FMA-10000 series automatic mesh filters are designed to manage large flow rates with efficiency and reliability across a wide range of industries.

FEATURES

  • Handles high flow volumes with ease, making it ideal for municipal, industrial, and irrigation systems.
  • Vertical design with multiple cartridges maximises filtration capacity while keeping the installation footprint compact.
  • Electric actuation system ensures consistent performance where power is available.
  • Suitable for applications such as drinking water facilities, desalination plants, food production, co-generation plants, chemical industries, and cooling towers.
  • Provides a physical barrier against zebra mussels, protecting equipment and extending system life.
  • Supports effective filtration for field irrigation and golf courses, helping maintain water quality and operational reliability.

Models & Specs

Model Code Inlet/Outlet Connection Size Min. Max. Operating  Pressure (Bar/PSI) Filtering surface (cm² / ft²) Filtration degrees (μm) Backwashing Flowrate (M³/H / GPM)
FMA-10000 Series 10210 DN-450 (18’’) 2 – 10 / 29 – 145 (Any others, ask SF) 26420 / 28,44 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 50 / 220
FMA-10000 Series 10212 DN-450 (18’’) 2 – 10 / 29 – 145 (Any others, ask SF) 33000/ 35,52 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 40 / 176
FMA-10000 Series 10214 DN-450 (18’’) 2 – 10 / 29 – 145 (Any others, ask SF) 42600/ 45,85 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 50 / 220
FMA-10000 Series 10310 DN-500 (20’’) 2 – 10 / 29 – 145 (Any others, ask SF) 39630 / 42,66 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 75 / 330
FMA-10000 Series 10312 DN-500 (20’’) 2 – 10 / 29 – 145 (Any others, ask SF) 49500 / 53,28 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 60/ 264
FMA-10000 Series 10314 DN-500 (20’’) 2 – 10 / 29 – 145 (Any others, ask SF) 63900 / 68,78 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 75/ 330
FMA-10000 Series 10410 DN-600 (24’’) 2 – 10 / 29 – 145 (Any others, ask SF) 52840 / 56,88 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 100/440
FMA-10000 Series 10412 DN-600 (24’’) 2 – 10 / 29 – 145 (Any others, ask SF) 66000 / 71,04 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 80/ 352
FMA-10000 Series 10414 DN-600 (24’’) 2 – 10 / 29 – 145 (Any others, ask SF) 85200 / 91,71 1000, 500, 300, 200, 125, 100, 80, 50, 25, 20, 10 100/440
