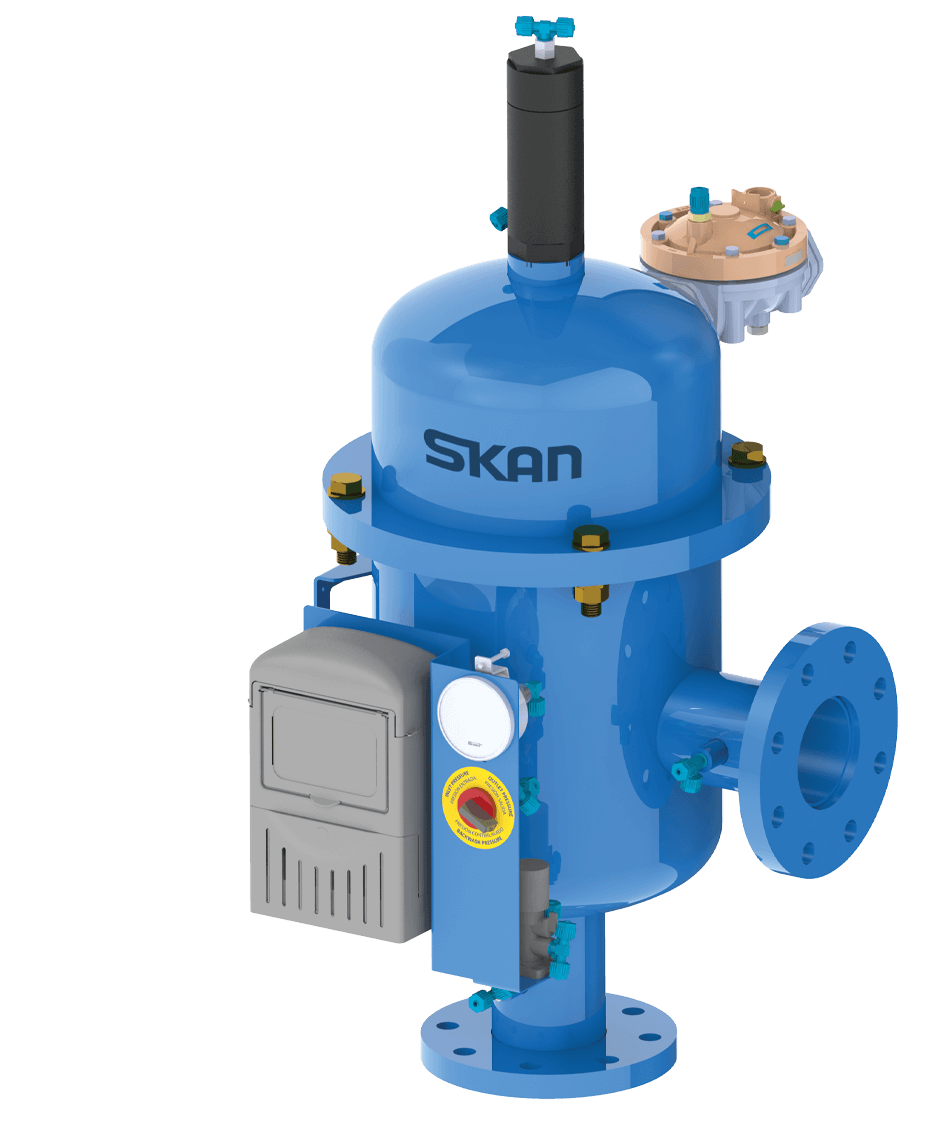

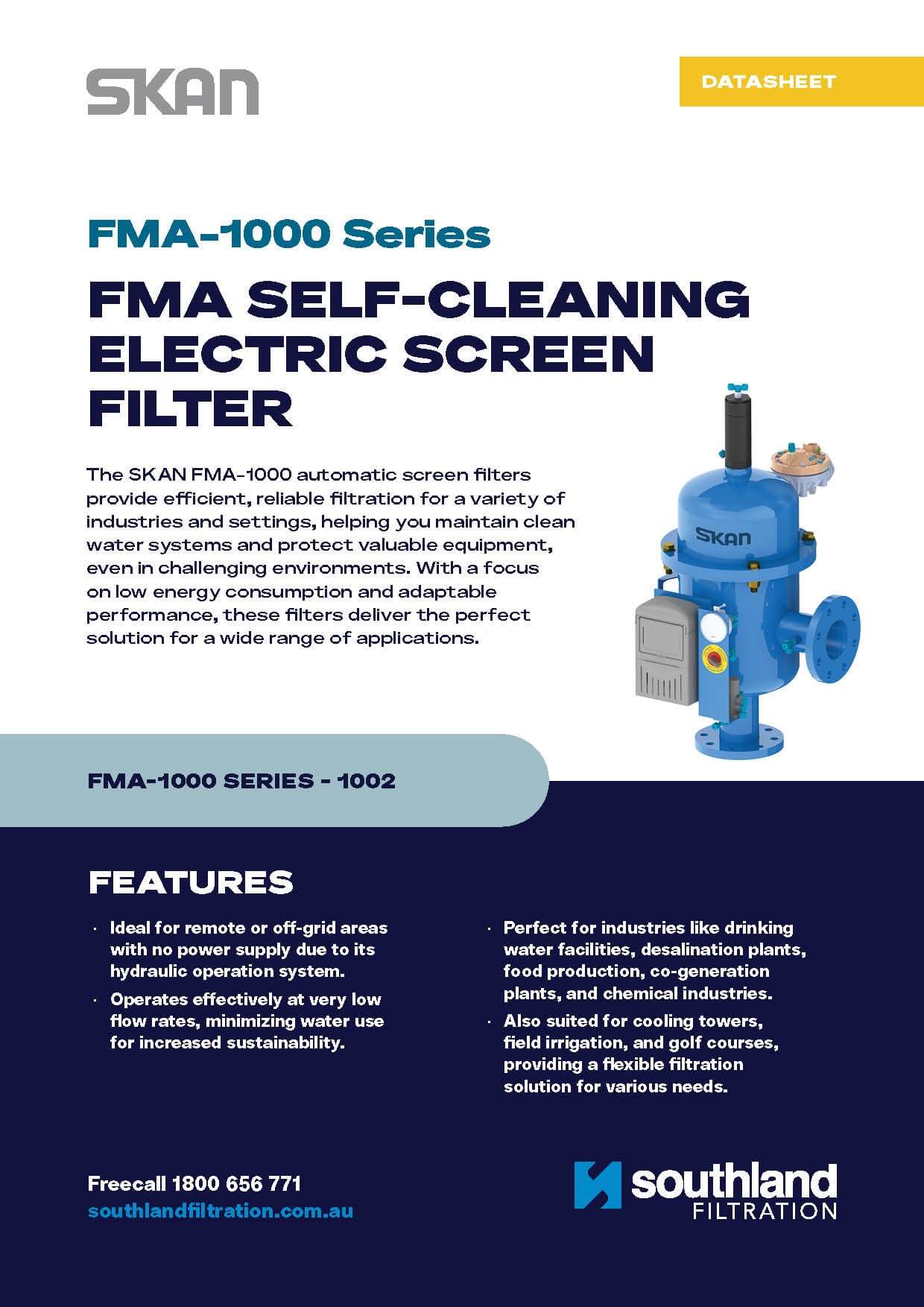

SKAN FMA-1000 Series
The SKAN FMA-1000 automatic screen filters provide reliable, low-maintenance filtration to keep water systems clean and protect equipment, even in demanding conditions. Designed for efficiency, they operate with minimal energy use and adapt to a wide range of applications.
- Ideal for remote areas – runs without a power supply thanks to its hydraulic operation system.
- Water-efficient – works effectively at low flow rates, reducing water use and supporting sustainability.
- Versatile applications – drinking water facilities, desalination plants, food production, co-generation plants, and chemical industries.
- Flexible use – also suited for cooling towers, field irrigation, and golf courses.
Models & Specs
Model | Code | Inlet/Outlet Connection Size | Min. Max. Operating Pressure (Bar/PSI) | Filtering surface (cm² / ft²) | Filtration degrees (μm) | Backwashing flowrate (M³/H / GPM) |
---|---|---|---|---|---|---|
FMA-1000 Series | 1002 | DN-50 (2’’) | 2,5 – 10 / 36 – 145 (Any others, ask SF ) | 1600 / 1,72 | 1000, 500, 300, 200, 125, 100, 74 | 5 / 22 |
FMA-1000 Series | 1003 | DN-80 (3’’) | 2,5 – 10 / 36 – 145 (Any others, ask SF ) | 1600 / 1,72 | 1000, 500, 300, 200, 125, 100, 74 | 5 / 22 |
FMA-1000 Series | 1004 | DN-100 (4’’) | 2,5 – 10 / 36 – 145 (Any others, ask SF ) | 2475 / 2,66 | 1000, 500, 300, 200, 125, 100, 74 | 5 / 22 |
FMA-1000 Series | 1006 | DN-150 (6’’) | 2,5 – 10 / 36 – 145 (Any others, ask SF ) | 4950 / 5,33 | 1000, 500, 300, 200, 125, 100, 74 | 10 / 44 |
