SKAN Connector

S2000 Series

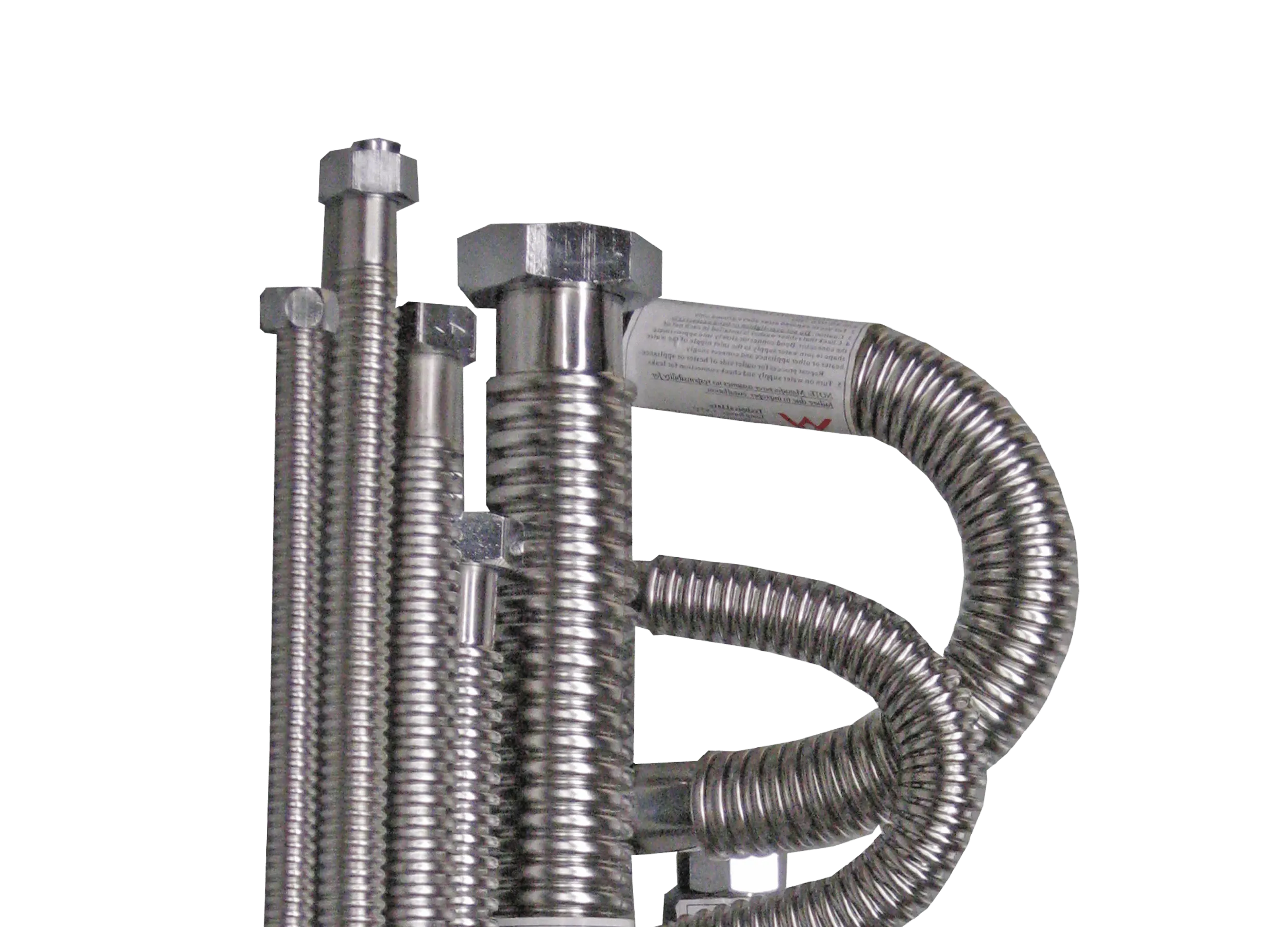

Stainless Steel Flexible Connectors


An easy to install, fully flexible 316 stainless steel connector, that will save time and money on those difficult jobs joining A to B.

  • Full bore - a 25mm threaded end has 25mm internal diameter pipe
  • No deformity in the curvature
  • No rubber or plastic hose that will reduce flow
  • Will not corrode or rust
  • No galvanic effect. No dielectric union required
  • Resists work hardening
  • WaterMark approved (ATS 5200.489:2009)
  • Max operating pressure - 3,000kPa
  • Max water temperature - 95ºC

Models & Specs

CODE LENGTH PIPE CONNECTION
S20000501 300mm (12”) 12 x 12mm
S20000502 450mm (18”) 12 x 12mm
S20000503 600mm (24”) 12 x 12mm
S20000504 900mm (36”) 12 x 12mm
S20000505 1200mm (48”) 12 x 12mm
S20001001 150mm (6”) 20 x 20mm
S20001002 300mm (12”) 20 x 20mm
S20001003 450mm (18”) 20 x 20mm
S20001004 600mm (24”) 20 x 20mm
S20001005 900mm (36”) 20 x 20mm
S20001006 1200mm (48”) 20 x 20mm
S20001501 300mm (12”) 25 x 25mm
S20001502 450mm (18”) 25 x 25mm
S20001503 1200mm (48”) 25 x 25mm
S20001504 1500mm (60”) 25 x 25mm
S20001505 600mm (24”) 25 x 25mm
S20001506 900mm (36”) 25 x 25mm
S20002001 450mm (18”) 32 x 32mm
S20002002 600mm (24”) 32 x 32mm
S20002003 900mm (36”) 32 x 32mm
S20002501 450mm (18”) 40 x 40mm
S20002502 600mm (24”) 40 x 40mm
S20002503 900mm (36”) 40 x 40mm
S20002504 1200mm (48”) 40 x 40mm
S20002505 1500mm (60”) 40 x 40mm
S20003001 450mm (18”) 50 x 50mm
S20003002 600mm (24”) 50 x 50mm
S20003003 900mm (36”) 50 x 50mm
S20003004 1200mm (48”) 50 x 50mm
S20003005 1500mm (60”) 50 x 50mm
