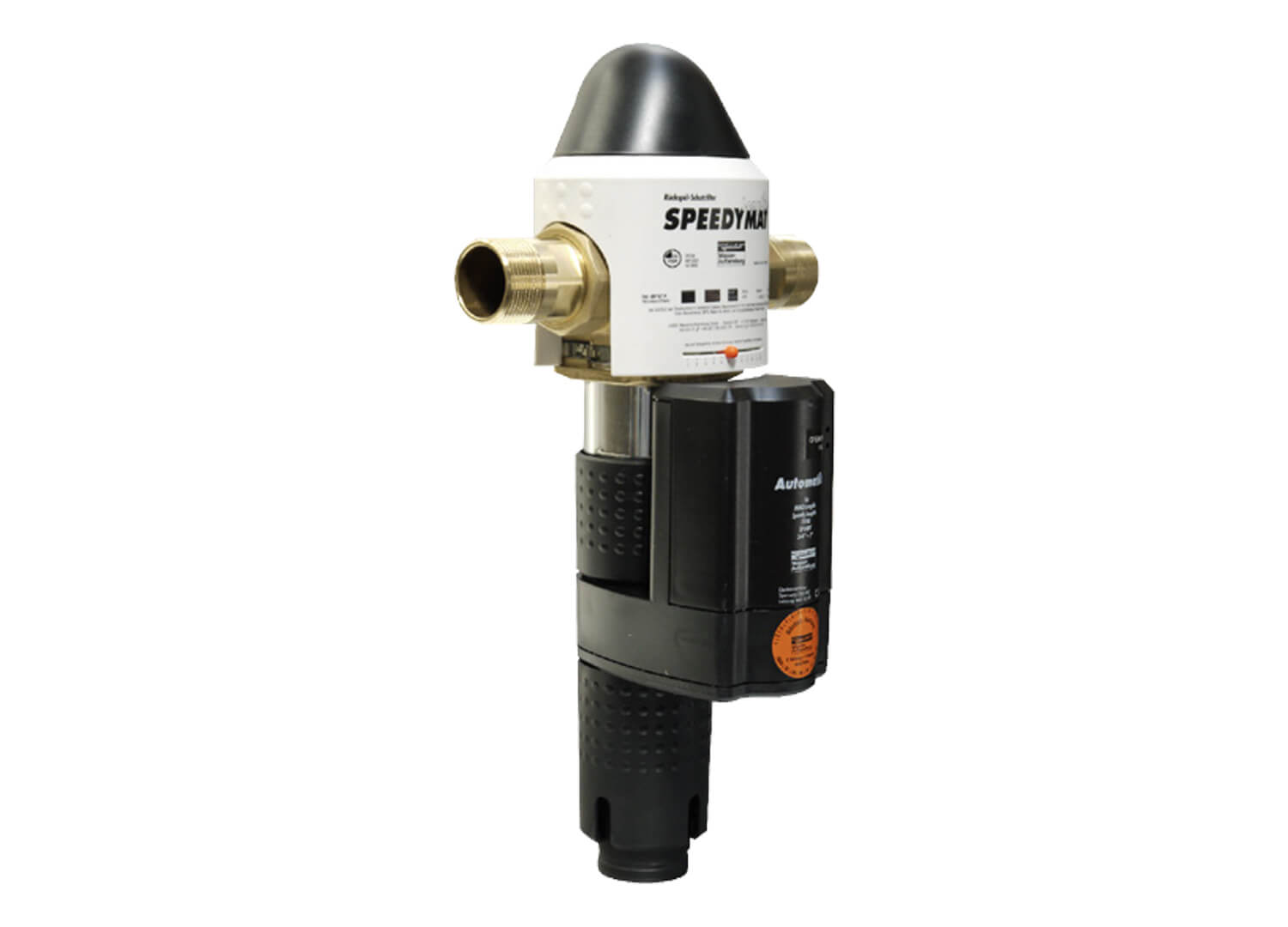

JSY-LF-A Series
- Flows up to 4.7 L/s
- Automatic backwash via timer control (Adjustable settings of 24hr, weekly, monthly, and 2 monthly)
- Backwash cleaning process via rotating suction arms
- 100 micron stainless steel screen
- No interruption to water flow during screen cleaning
- Can be mounted in vertical or horizontal pipe runs
- Clear viewing glass enables full view of screen and backwash operation
- BMS connection for operation and fault status as standard
- Minimum operating pressure: 200kPa
- Pressure class: PN16
Models & Specs
| CODE | Model | FLOW RATE M3/HOUR (L/S) |
|---|---|---|
| J8070698 | JSY-LF-A 25mm (1″) | 7.1 (1.9) |
| J8070699 | JSY-LF-A 32mm (1 1/4″) | 7.3 (2.0) |
| J8070700 | JSY-LF-A 40mm (1 1/2″) | 12.2 (3.4) |
| J8070701 | JSY-LF-A 50mm (2″) | 15.1 (4.2) |
Spare Parts
| Model | CODE | DESCRIPTION |
|---|---|---|
| JSY-LF-A 20 – 32mm Series | J0085013 | Spare Parts Kit to suit JSY-LF-A 25-50mm |
| J2990412 | 100 Micron Screen & Suction Arm Assembly to suit JSY-LF-A 20-32mm (inc. seal kit) | |
| JSY-LF Series & JSY-LF-A 40 – 50mm Series | J0085013 | Spare Parts Kit to suit JSY-LF-A 25-50mm |
| J2170565 | 100 Micron Screen & Suction Arm Assembly to suit JSY-LF-A 40-50mm (inc. seal kit) |
