JPF AT Series

Judo

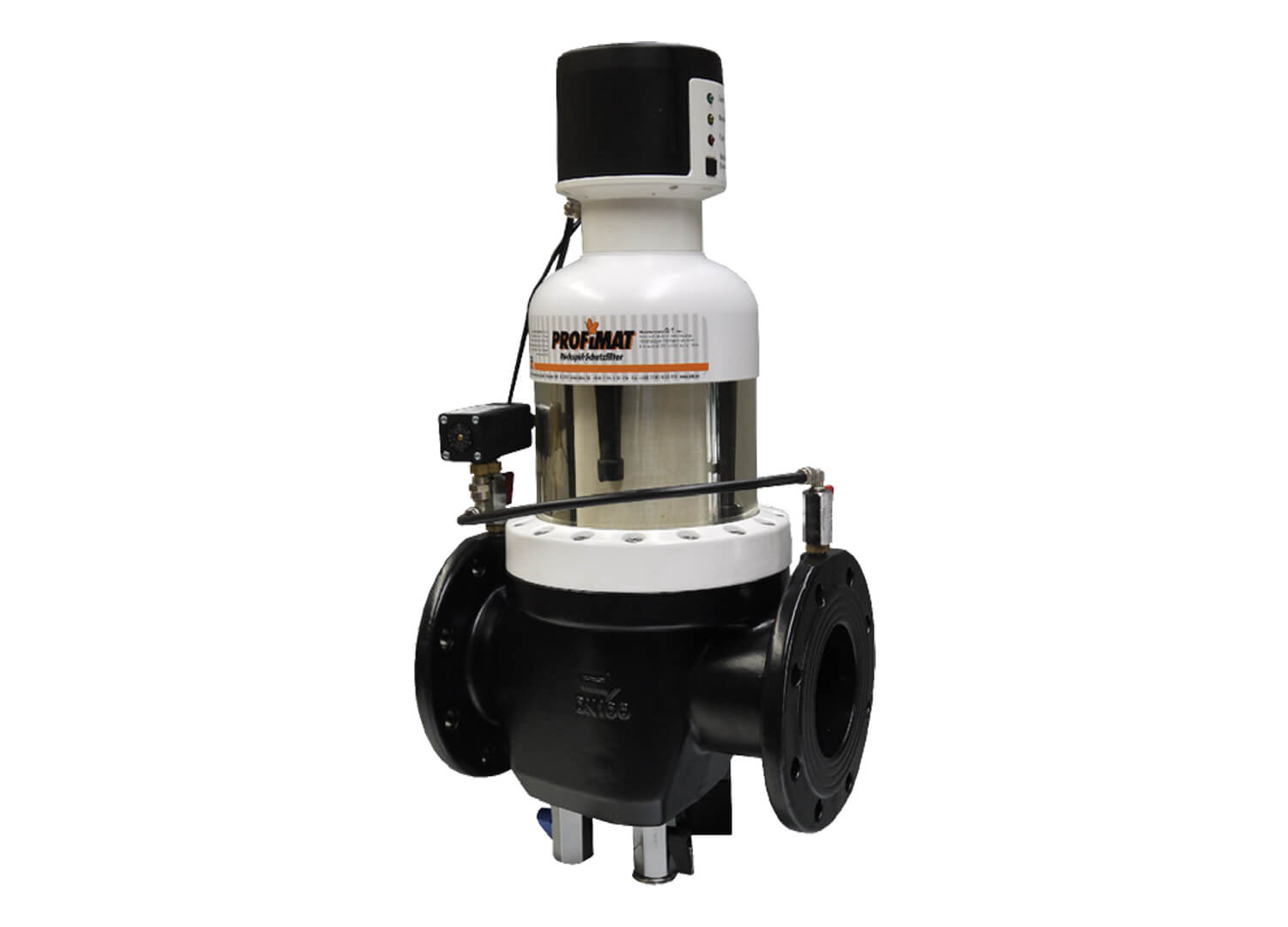

JPF AT Series

Timer Controlled Backwash Filter

  • Flows up to 21.6 L/s
  • Automatic backwash via timer control (Adjustable settings of 4hr, 8hr, 24hr, weekly and monthly)
  • Extremely efficient screen cleaning ratio of 1:1 using point rotation principle
  • Standard 100 micron stainless steel screen (Silver coated to inhibit bacterial growth)
  • No interruption to water flow during screen cleaning
  • Can be mounted in vertical or horizontal pipe runs
  • Clear viewing glass enables full view of screen and backwash operation
  • BMS connection for operation, fault and backwash status available
  • Minimum operating pressure: 200kPa
  • Pressure class (25mm-DN65): PN16
  • Pressure class (DN80-DN200): PN10

Models & Specs

CODE Model FLOW RATE M3/HOUR (L/S)
J8020352 JPF AT 25mm (1″) 7.6 (2.1)
J8020353 JPF AT 32mm (1 1/4″) 8.5 (2.3)
J8020354 JPF AT 40mm (1 1/2″) 18.0 (5.0)
J8020355 JPF AT 50mm (2″) 22.0 (6.1)
J8025005 JPF AT DN65 28.0 (7.7)
J8025020 JPF AT DN65 w/ BMS 28.0 (7.7)
J8025016 JPF AT DN80 w/ BMS 65.0 (18.0)
J8025017 JPF AT DN100 w/ BMS 78.0 (21.6)

* UPGRADES FOR JPF AT SERIES:

J0085001 JUDO BMS upgrade to suit JPF series
J0086030 JUDO Screen upgrade to JPF (30 micron)
J0086050 JUDO Screen upgrade to JPF (50 micron)
J0086320 JUDO Screen upgrade to JPF (320 micron)
J0086500 JUDO Screen upgrade to JPF (500 micron)

* Only available with 40mm-DN200 systems.

Spare Parts

Model Code Description
JPF 20-32mm Series J2010335 Spare Parts Kit to suit JPF 20-32mm
J2020728 30 Micron Screen & Suction Arm Assembly suits JPF 20-32mm (inc. seal kit)
J2021359 100 Micron Screen & Suction Arm Assembly suits JPF 20-32mm (inc. seal kit)
J2020734 320 Micron Screen & Suction Arm Assembly suits JPF 20-32mm (inc. seal kit)
J2020740 500 Micron Screen & Suction Arm Assembly suits JPF 20-32mm (inc. seal kit)
J2020680 Circuit Board (Standard)
J2020972 Pressure Differential Switch Kit
J2320135 Motor/Gearbox Assembly
JPF 40-65mm Series J2020788 Potential Free Circuit Board Conversion Kit
J2010337 Spare Parts Kit to suit 40-65mm JPF Models
J2020730 30 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2020746 50 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2021360 100 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2020736 320 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2020742 500 Micron Screen & Suction Arm Assembly suits JPF 40-50mm (inc. seal kit)
J2020680 Circuit Board (Standard)
J2020972 Pressure Differential Switch Kit
J2320135 Motor/Gearbox Assembly
J2020788 Potential Free Circuit Board Conversion Kit
JPF 80-200mm SERIES & JFXL Series J2010339 Spare Parts Kit to suit 80-200mm JPF Models
J2020732 30 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020748 50 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2021361 100 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020738 320 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020680 Circuit Board (Standard)
J2020972 Pressure Differential Switch Kit
J2320135 Motor/Gearbox Assembly
J2020788 Potential Free Circuit Board Conversion Kit
