Judo

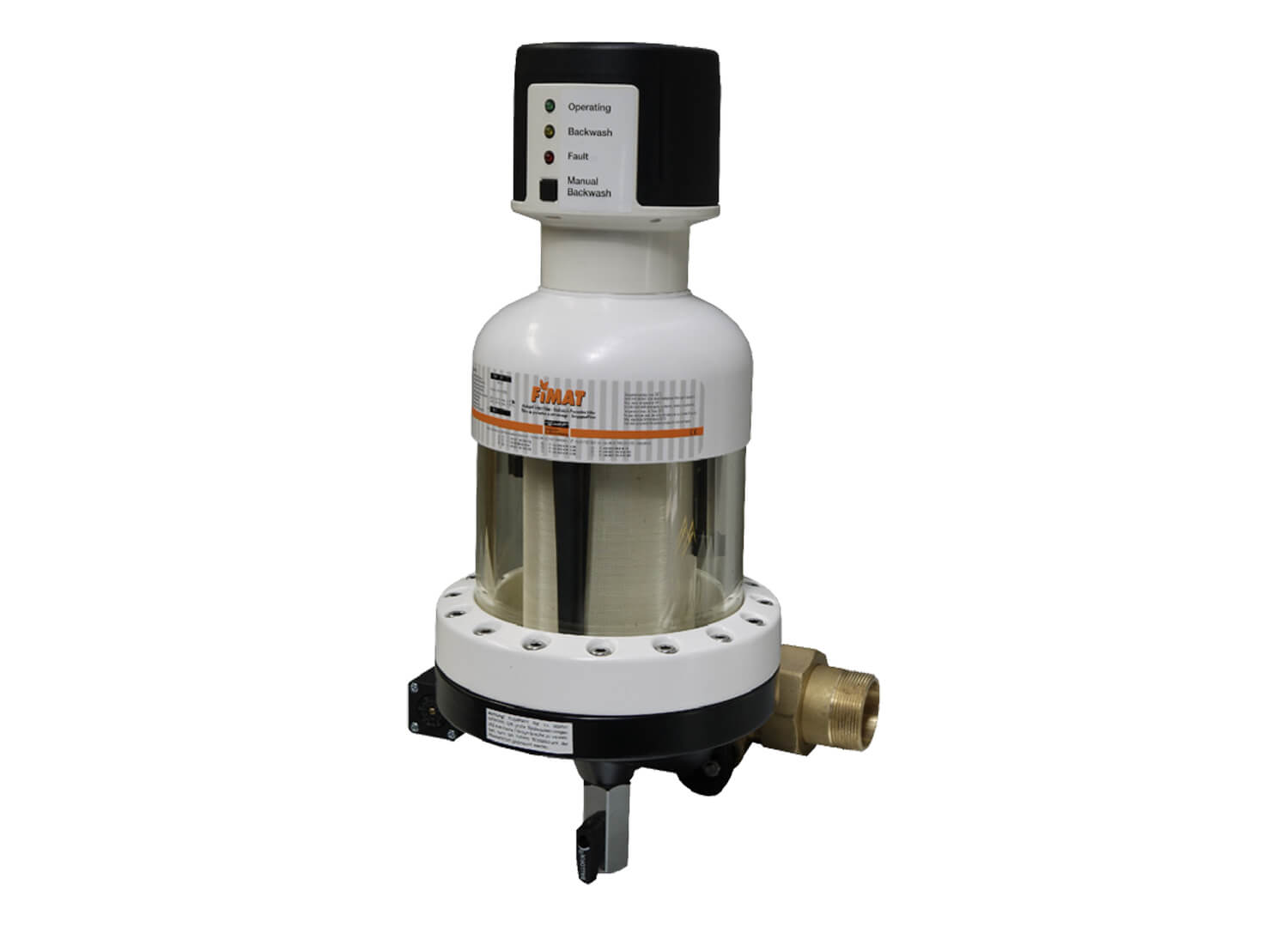

JFXL AT Series

Timer Controlled Backwash Filter

  • Flows up to 6.1 L/s
  • Automatic backwash via timer control (Adjustable settings of 4hr, 8hr, 24hr, weekly and monthly)
  • Extremely efficient screen cleaning ratio of 1:1 using point rotation principle
  • Standard 100 micron stainless steel screen (Silver coated to inhibit bacterial growth)
  • No interruption to water flow during screen cleaning
  • Can be mounted in vertical or horizontal pipe runs
  • Clear viewing glass enables full view of screen and backwash operation
  • BMS connection for operation, fault, and backwash status available
  • Fitted with DN80-DN200 screen for greater surface area
  • Minimum operating pressure: 200kPa
  • Pressure class: PN10

Models & Specs

CODE Model FLOW RATE M3/HOUR (L/S)
J8020099 JFXL AT 40mm 20.0 (5.5)
J8020100 JFXL AT 50mm 22.0 (6.1)

* UPGRADES FOR JFXL AT SERIES:

J0085001 JUDO BMS upgrade to suit JPF series
J0086030 JUDO Screen upgrade to JPF (30 micron)
J0086050 JUDO Screen upgrade to JPF (50 micron)
J0086320 JUDO Screen upgrade to JPF (320 micron)
J0086500 JUDO Screen upgrade to JPF (500 micron)

Spare Parts

Model Code Description
JPF 80-200mm SERIES & JFXL Series J2010339 Spare Parts Kit to suit 80-200mm JPF Models
J2020732 30 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020748 50 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2021361 100 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020738 320 Micron Screen & Suction Arm Assembly to suit JPF 80-200mm (inc. seal kit)
J2020680 Circuit Board (Standard)
J2020972 Pressure Differential Switch Kit
J2320135 Motor/Gearbox Assembly
J2020788 Potential Free Circuit Board Conversion Kit
